Anti-Reverse Power Flow Detection: Why It’s Critical for Residential Energy Storage, Balcony PV, and C&I Energy Storage

As residential solar and energy storage systems become increasingly popular, a critical technical challenge emerges: reverse power flow. While feeding excess energy back to the grid sounds beneficial, uncontrolled reverse power flow can create serious safety hazards, regulatory violations, and equipment damage.

What is Reverse Power Flow?

Reverse power flow occurs when electricity generated by your solar panels or stored in your battery system flows backward into the utility grid. This typically happens when:

Your solar panels generate more power than your home is consuming
Your battery system is fully charged and solar production exceeds consumption
You’re discharging your battery during low consumption periods

Why Reverse Power Flow is Dangerous for Residential Systems

Grid Safety Concerns

Utility workers expect power lines to be de-energized during outages. Reverse power flow can keep lines energized, creating electrocution risks for maintenance crews.

Equipment Damage

Backfeed power can damage:

Utility transformers and protection equipment
Neighbors’ appliances
Your own inverter and electrical components

Regulatory Compliance Issues

Most utilities prohibit unauthorized grid interconnection. Reverse power flow may violate interconnection agreements, resulting in fines or forced system disconnection.

System Performance Impacts

Uncontrolled export can trigger:

Inverter shutdowns or throttling
Reduced energy self-consumption
Wasted solar generation

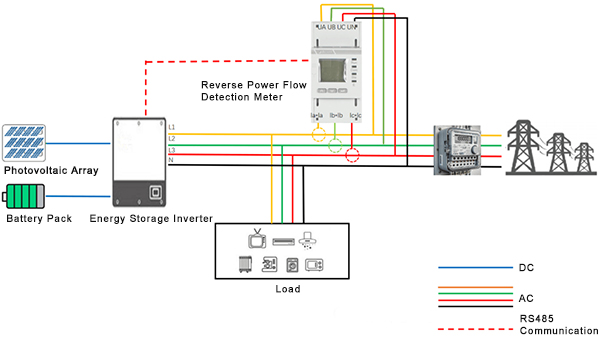

How Anti-Reverse Power Flow Detection Works

Modern energy management systems use several approaches to prevent unauthorized grid export:

Power Flow Monitoring

Advanced energy meters like our PC311-TY bidirectional energy meter continuously monitor power direction and magnitude at the grid connection point. These devices can detect even small amounts of reverse power within seconds.

Inverter Power Limiting

When reverse power is detected, the system signals inverters to reduce output, maintaining zero export or limited export within utility-approved limits.

Battery Charging Control

Excess solar energy can be diverted to battery storage rather than being exported to the grid, maximizing self-consumption.

Solutions for Different Applications

Balcony Power Plants (Balkonkraftwerke)

For plug-in solar systems, anti-reverse flow functionality is often integrated directly into microinverters or power electronic components. These systems typically limit output to prevent export while maximizing self-consumption.

Residential Energy Storage Systems

Complete home battery systems require grid-forming inverters with advanced power control capabilities. These systems can operate in zero-export mode while maintaining household power quality.

Commercial & Industrial Applications

Larger systems typically use dedicated power control systems that combine revenue-grade meters with advanced inverter controls to manage power flow across multiple generation sources and loads.

Implementing Effective Reverse Power Protection

A reliable anti-reverse power flow system requires:

Accurate Power Measurement
High-precision energy meters with bidirectional measurement capability
Fast Response Times
Detection and control systems that respond within electrical cycles
Grid Code Compliance
Systems that meet local utility interconnection requirements
Redundant Safety Systems
Multiple layers of protection to ensure reliability

The OWON Advantage in Power Flow Management

At OWON, we specialize in energy monitoring solutions that enable safe system operation. Our PC311-TY smart energy meter provides the critical measurement capabilities needed for anti-reverse power flow applications, featuring:
