The rapid adoption of distributed solar energy presents a fundamental challenge: maintaining grid stability when thousands of systems could feed excess power back into the network. Zero export metering has thus evolved from a niche option to a core compliance requirement. For commercial solar integrators, energy managers, and OEMs serving this market, implementing robust, reliable zero export solutions is essential. This guide provides a technical deep dive into the function, architecture, and selection criteria for effective zero export meter systems.
The “Why”: Grid Stability, Compliance, and Economic Sense
A solar zero export meter is fundamentally a grid protection device. Its core function is to ensure a photovoltaic (PV) system consumes all self-generated energy on-site, exporting precisely zero (or a strictly limited amount) of electricity back to the utility.
- Grid Integrity: Unmanaged reverse power flow can cause voltage surges, interfere with legacy grid protection schemes, and degrade power quality for an entire local network.
- Regulatory Driver: Utilities worldwide increasingly mandate zero export metering for new installations, especially under simplified interconnection agreements that avoid the need for complex feed-in tariff contracts.
- Commercial Certainty: For businesses, it eliminates the risk of grid export penalties and simplifies the economic model of solar investment to pure self-consumption savings.
The “How”: Technology and System Architecture
Effective zero export control relies on a real-time measurement and feedback loop.
- Precision Measurement: A high-accuracy, bi-directional energy meter (like a zero export meter 3 phase for commercial sites) is installed at the grid point of common coupling (PCC). It continuously measures net power flow with directional awareness.
- High-Speed Communication: This meter communicates real-time data (typically via Modbus RTU, MQTT, or SunSpec) to the solar inverter’s controller.
- Dynamic Curtailment: If the system predicts export (net power approaches zero from the import side), it signals the inverter to curtail output. This closed-loop control happens in sub-second intervals.
Understanding the Implementation: Wiring and Integration
A standard zero export meter wiring diagram shows the meter as the critical node between the utility supply and the main site distribution panel. For a 3 phase system, the meter monitors all conductors. The crucial element is the data communication link (e.g., RS485 cable) running from the meter to the inverter. The system’s effectiveness depends less on the physical wiring diagram and more on the speed, accuracy, and reliability of this data exchange.
Selecting the Right Foundation: Metering Solution Comparison
Choosing the correct metering solution is pivotal. Below is a comparison of common approaches, highlighting the progression towards integrated, IoT-enabled solutions.
| Solution Type | Typical Components | Advantages | Disadvantages & Risks | Ideal Use Case |
|---|---|---|---|---|
| Basic Unidirectional Meter + Dedicated Controller | Simple current transducer + dedicated control box | Lower initial price | Low accuracy, slow response; High risk of grid violation; No data logging for troubleshooting | Largely obsolete, not recommended |
| Advanced Bidirectional Meter + External Gateway | Compliant revenue-grade meter + PLC/Industrial Gateway | High accuracy; Extensible; Data available for analytics | Complex system integration; Multiple suppliers, unclear accountability; Potentially high total cost | Large, custom industrial projects |
| Integrated Smart Meter Solution | IoT Meters (e.g., Owon PC321) + Inverter Logic | Easy installation (clamp-on CTs); Rich data set (V, I, PF, etc.); Open APIs for BMS/SCADA integration | Requires inverter compatibility verification | Most commercial & industrial solar projects; Preferred for OEM/ODM integration |
Key Selection Insight:
For system integrators and equipment manufacturers, choosing Solution 3 (Integrated Smart Meter) represents a path toward greater reliability, data utility, and maintenance ease. It transforms a critical measurement component from a “black box” into a “data node,” laying the foundation for future energy management expansions like load control or battery integration.

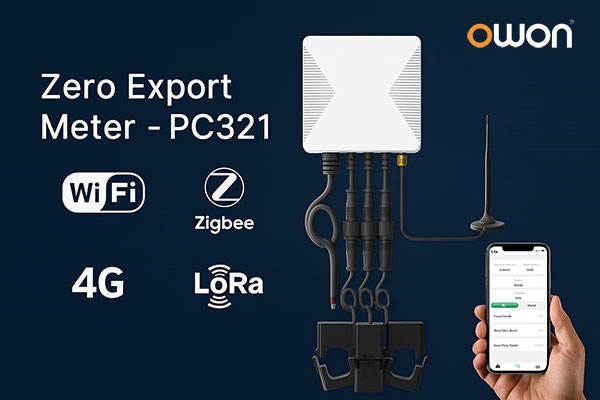

Owon PC321: An Intelligent Sensing Core Designed for Reliable Zero Export Control
As a professional smart energy meter manufacturer, Owon designs products like the PC321 Three-Phase Power Clamp with specifications that meet the critical demands of the measurement side in a zero export system:
- High-Speed, Accurate Measurement: Provides true bidirectional active power measurement, the only reliable input for the control loop. Its calibrated accuracy ensures precise control.
- Three-Phase & Split-Phase Compatibility: Natively supports 3 phase and split-phase systems, covering major global commercial voltage configurations.
- Flexible Integration Interfaces: Through ZigBee 3.0 or optional open protocol interfaces, the PC321 can function as a standalone sensor reporting to a cloud EMS or as a foundational data source for custom controllers built by OEM/ODM partners.
- Deployment-Friendly: Split-core current transformers (CTs) enable non-intrusive installation, significantly reducing the risk and cost of retrofitting live electrical panels—a key advantage over traditional meters.
A Technical Perspective for Integrators:
Consider the PC321 as the “sensory organ” of the zero export system. Its measurement data, fed via standard interfaces into the control logic (which can reside in an advanced inverter or your own gateway), creates a responsive, transparent, and reliable system. This decoupled architecture provides system integrators with greater flexibility and control.
Beyond Zero Export: The Evolution to Smart Energy Management
Zero export metering is the starting point, not the endpoint, of intelligent energy management. The same high-precision measurement infrastructure can seamlessly evolve to support:
- Dynamic Load Coordination: Automatically activating controllable loads (EV chargers, water heaters) during predicted solar excess.
- Storage System Optimization: Directing battery charge/discharge to maximize self-consumption while adhering to the zero-export constraint.
- Grid Services Readiness: Providing the precise metering and controllable interface needed for future participation in demand response or microgrid programs.
Conclusion: Transforming Compliance into a Competitive Advantage
For wholesalers, system integrators, and manufacturers seeking hardware partnerships, zero export solutions represent a significant market opportunity. Success hinges on providing or integrating solutions that not only ensure compliance but also create long-term data value for the end-customer.
When evaluating the zero export meter price, it should be framed within total cost of ownership and risk mitigation. The value of a solution based on reliable IoT meters like the PC321 lies in avoiding compliance penalties, reducing operational disputes, and paving the way for future upgrades.
Owon provide detailed technical integration guides and device-level API documentation for system integrators and OEM partners. If you are evaluating solutions for a specific project or require customized hardware, please contact Owon technical team for further support.
