Zigbee Power Meter Clamp for Panel and Circuit Energy Monitoring

As energy monitoring projects expand across buildings, solar systems, and distributed electrical infrastructures, non-invasive current measurement has become a critical requirement. A zigbee power meter clamp offers a practical solution for monitoring electrical loads and circuits without cutting cables or interrupting existing wiring.

Unlike plug-level power meters or fixed inline devices, clamp-type Zigbee power meters use external current transformers (CT clamps) to measure current flow safely and efficiently. This makes them especially suitable for retrofit installations, distribution panels, and high-current circuits where flexibility and safety are essential.

At OWON, we design and manufacture clamp-type Zigbee power meters as part of our broader Zigbee energy monitoring portfolio. In this guide, we explain what a Zigbee power meter clamp is, how it works, where it is used, and how decision-makers evaluate it for real-world energy monitoring projects.

What Is a Zigbee Power Meter Clamp?

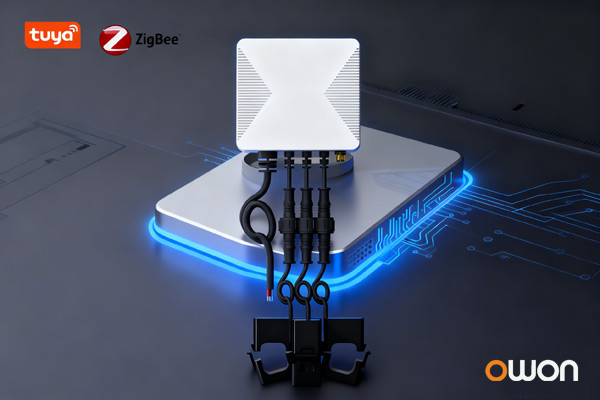

A zigbee power meter clamp is an energy monitoring device that measures electrical current using external CT clamps and transmits energy data wirelessly via the Zigbee protocol.

Instead of being wired directly in series with a circuit, the CT clamp is placed around an existing conductor. This allows current measurement without disconnecting power, making clamp-type meters ideal for retrofit projects and live electrical environments.

Typical parameters measured include:

• Current and voltage

• Active power and energy consumption

• Power factor and load behavior

The collected data is sent through a Zigbee network to a gateway or energy management system for analysis and visualization.

Why Use a Clamp-Type Zigbee Power Meter?

Clamp-type Zigbee power meters are chosen when installation constraints or operational risks make inline meters impractical.

Common reasons include:

• Non-invasive installation without cutting or rewiring cables

• Reduced downtime during deployment

• Suitability for high-current applications using different CT ranges

• Flexible adaptation to various panel layouts

For system planners, these advantages translate into lower installation risk and faster project rollout.

Typical Applications of Zigbee Power Meter Clamps

Zigbee power meter clamps are widely used across different energy monitoring scenarios:

Distribution Panels and Sub-Metering

CT clamps allow energy monitoring at the feeder or circuit level inside electrical distribution cabinets, providing visibility into specific zones or loads.

Solar and Energy Storage Systems

Clamp-type meters are often used to monitor grid import/export, solar generation, and load balance without interfering with existing metering infrastructure.

Commercial and Multi-Site Deployments

In offices, retail chains, and light industrial facilities, clamp meters support scalable energy monitoring across multiple sites with consistent installation methods.

How a Zigbee Power Meter Clamp Works in a System

A typical clamp-based Zigbee energy monitoring system includes:

1. One or more clamp-type Zigbee power meters installed in the panel

2. External CT clamps sized according to current range

3. A Zigbee gateway aggregating energy data

4. A local or cloud-based monitoring platform

Because Zigbee operates as a local mesh network, multiple clamp meters can communicate reliably even in environments with metal enclosures or dense installations.

Clamp-Type vs DIN Rail Zigbee Power Meters

Clamp-type and DIN rail Zigbee power meters serve different roles within an energy monitoring system.

In many projects, clamp meters are used alongside DIN rail meters to balance installation flexibility and long-term system structure.

Key Factors When Selecting a Zigbee Power Meter Clamp

When evaluating clamp-type Zigbee power meters, decision-makers typically focus on:

• Supported CT clamp ranges

• Measurement accuracy over time

• Wireless stability inside electrical cabinets

• Compatibility with Zigbee gateways and platforms

• Availability of complementary meter types within the same ecosystem

These considerations help ensure that the chosen solution can scale beyond an initial pilot phase.

Considerations for System Deployment and Long-Term Projects

In long-term energy monitoring projects, clamp-type power meters are rarely deployed in isolation. They are usually part of a broader system that may include DIN rail meters, smart relays, and load-level monitoring devices.

For such projects, it is important to work with a manufacturer that can provide:

• Consistent Zigbee device compatibility across product types

• Stable hardware platforms for long-term deployment

• Flexibility to support different installation methods within one system

This approach reduces integration risk and simplifies future system expansion.

Learn More About Zigbee Power Meter Solutions

This article focuses on clamp-type devices. For a complete overview of Zigbee power meter types and system architectures, you can refer to our central guide on Zigbee power meters.

If you are evaluating zigbee power meter clamp solutions for a specific project, our team can assist with application review, technical documentation, and deployment recommendations.

Contact us to discuss your energy monitoring requirements
Request specifications or samples for clamp-type Zigbee power meters
