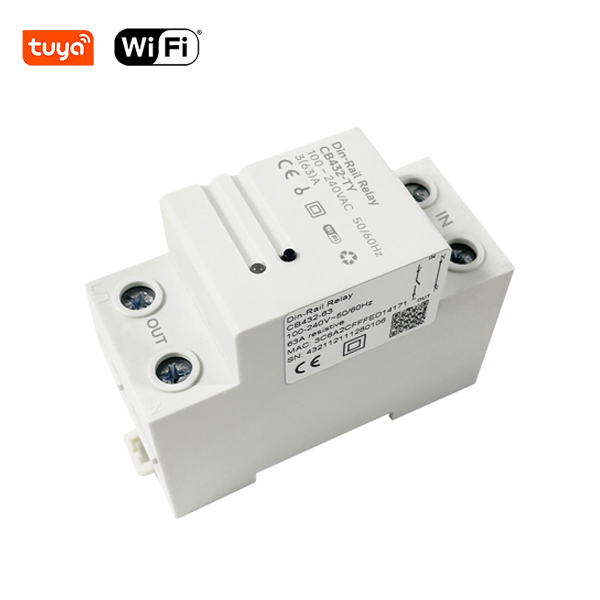

Smart Energy Monitor Switch Breaker 63A Din-Rail relay Wifi App CB 432-TY

Main Feature:

The Din-Rail Relay CB432-TY is a device with electricity functions. It allows you to control On/Off status and to check real-time energy usage via mobile App.


  • Model: CB432-TY
  • Dimension: 82(L) x 36(W) x 66(H) mm
  • Port: Zhangzhou,Fujian,China




  • Product Detail

    Product Tags

    Main Features & Specs
    · Installation: Din-rail
    · Max Load Current: 63A (100A Relay)
    · Single Break: 63A(100A Relay)
    · Measures Real-time Votlage, Current, Power Factor, Active Power and Frequency
    · Compatible with Single-Phase System
    · Tuya Compatible or MQTT API for Integration

    下载 (5)

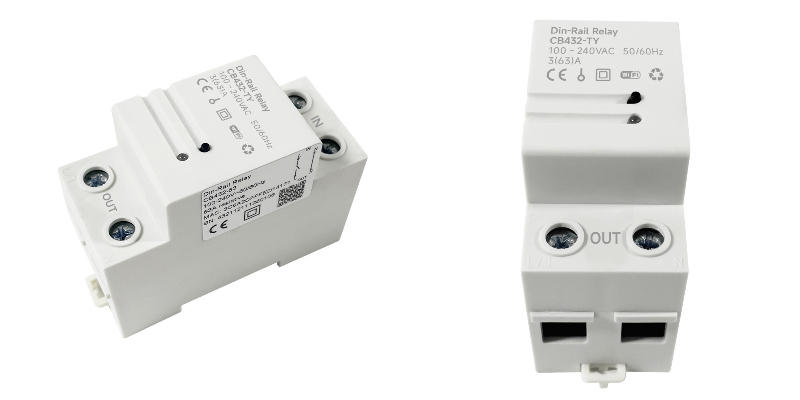

    下载 (6)

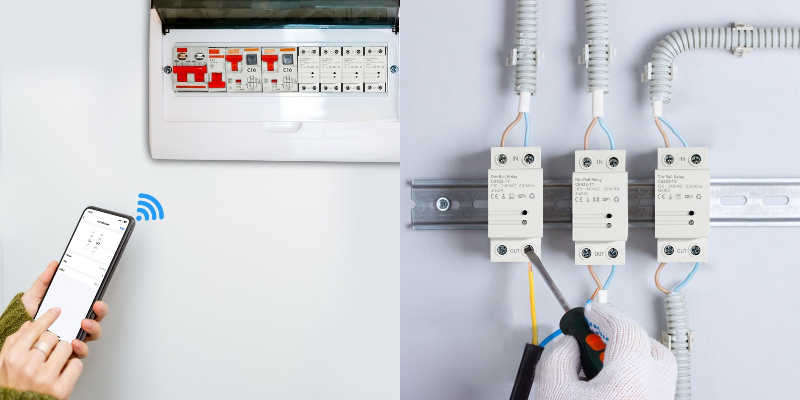

    下载 (7)

    OEM/ODM Customization & Control Integration
    The CB 432-TY is a smart energy monitor switch designed for high-current circuit control and remote energy management. OWON offers flexible OEM/ODM support including:
    Firmware customization and Tuya platform compatibility for smart energy ecosystems
    DIN-rail form factor with tailored enclosure, labeling, and relay control behavior per client needs
    Custom cloud connection or API integration available for industrial and commercial use
    Project-based cooperation for hardware/software adaptation, packaging, and certification support

    Compliance & Performance Assurance
    Built to meet strict international standards, the CB 432-TY ensures safe operation and consistent performance in both residential and commercial installations:
    Complies with key global certifications (e.g. CE, FCC, RoHS)
    Designed for long-term operation with load control capability up to 63A
    Reliable for use in smart panels, load management systems, or IoT-based distribution boxes

    Typical Use Cases
    This model is especially suited for applications requiring integrated monitoring and switching in one compact unit:
    Smart breaker function for lighting, HVAC, or water heater circuits with real-time energy monitoring
    Integration into Tuya-based mobile apps for remote scheduling and load control
    OEM customization for energy automation systems in smart homes or micro-offices
    Demand-side energy response or scheduled load shedding in utility programs
    Compact sub-distribution panel applications where remote breaker control is required
