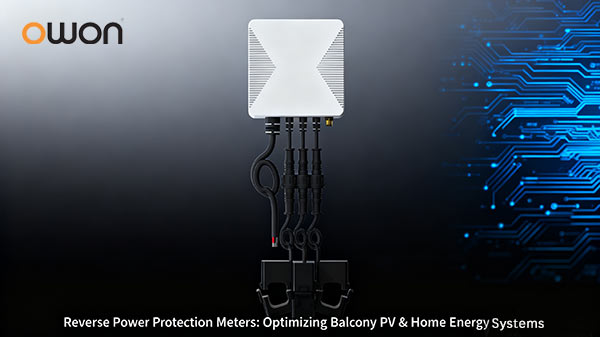

Optimizing Balcony PV & Home Energy Systems: A Technical Guide to Reverse Power Protection Meters

Introduction: The Rise of Balcony PV and the Reverse Power Challenge

The global shift towards decarbonization is fueling a quiet revolution in residential energy: balcony photovoltaic (PV) systems. From “micro-power plants” across European households to emerging markets worldwide, balcony PV is empowering homeowners to become energy producers.

However, this rapid adoption introduces a critical technical challenge: reverse power flow. When a PV system generates more electricity than the household consumes, the excess power can flow back into the public grid. This can cause:

• Grid Instability: Voltage fluctuations that disrupt local power quality.
• Safety Hazards: Risks for utility workers who may not expect live circuits from downstream.
• Regulatory Non-Compliance: Many utilities prohibit or penalize unauthorized feed-in to the grid.

This is where an intelligent Reverse Power Protection Solution, centered around a high-precision monitoring device like a ZigBee Power Clamp, becomes indispensable for a safe, compliant, and efficient system.

The Core Solution: How a Reverse Power Protection System Works

A reverse power protection system is an intelligent loop. The ZigBee Power Clamp meter acts as the “eyes,” while the connected gateway and inverter controller form the “brain” that takes action.

The Working Principle in a Nutshell:

1. Real-Time Monitoring: The power clamp, such as the PC321 model, continuously measures the direction and magnitude of power flow at the grid connection point with high-speed sampling. It tracks key parameters like Current (Irms), Voltage (Vrms), and Active Power.
2. Detection: It instantly detects when power begins to flow from the home to the grid.
3. Signal & Control: The clamp transmits this data via the ZigBee HA 1.2 protocol to a compatible home automation gateway or energy management system. The system then sends a command to the PV inverter.
4. Power Adjustment: The inverter curtails its output power precisely to match the home’s instantaneous consumption, eliminating any reverse flow.

This creates a ”Zero Export” system, ensuring all solar energy is consumed locally.

Key Features to Look for in a High-Quality Monitoring Solution

When selecting the core monitoring device for your balcony PV projects, consider these critical technical features based on the PC321 Power Clamp’s capabilities.

Technical Specifications at a Glance:

Beyond the Spec Sheet:

• Reliable Signal: The option for an external antenna ensures robust communication in challenging installation environments, which is critical for a stable control loop.
• Proactive Diagnostics: The ability to monitor parameters like Reactive Power can aid in diagnosing overall system health and power quality.

Frequently Asked Questions (FAQ) for Professionals

Q1: My system uses Wi-Fi, not ZigBee. Can I still use this?
A: The PC321 is designed for the ZigBee ecosystem, which offers a more stable and low-power mesh network ideal for critical control applications like reverse power protection. Integration is achieved through a ZigBee-compatible gateway , which can then often relay data to your cloud platform.

Q2: How does the system integrate with a PV inverter for control?
A: The power clamp itself does not control the inverter directly. It provides the critical real-time data to a logic controller (which can be part of a home automation gateway or a dedicated energy management system). This controller, upon receiving a “reverse power flow” signal from the clamp, sends the appropriate “curtail” or “reduce output” command to the inverter via its own supported interface (e.g., Modbus, HTTP API, dry contact).

Q3: Is the accuracy sufficient for legally binding utility billing?
A: No. This device is designed for energy monitoring and control applications, not for utility-grade billing. Its high accuracy (<±1.8%) is perfect for the control logic and providing highly reliable consumption data to the user, but it lacks the formal MID or ANSI C12.1 certifications required for official revenue metering.

Q4: What is the typical installation process?
A:

1. Mounting: Secure the main unit on the DIN rail in the distribution board.
2. CT Installation: Power down the system. Clamp the color-coded CTs around the main grid supply lines.
3. Voltage Connection: Connect the unit to the line voltage.
4. Network Integration: Pair the device with your ZigBee gateway for data integration and control logic setup.

Partner with a Specialist in Smart Power Metering and PV Solutions

For system integrators and distributors, selecting the right technology partner is as crucial as selecting the right components. Expertise in smart metering and a deep understanding of photovoltaic applications are paramount for ensuring project success and long-term system reliability.

Owon stands as a professional manufacturer specializing in advanced smart metering solutions, including the PG321 Power Clamp. Our devices are engineered to provide the accurate, real-time data essential for building robust reverse power protection systems, helping our partners navigate technical challenges and deliver compliant, high-performance energy systems to the market.

To explore how Owon’s specialized energy monitoring solutions can form the core of your balcony PV offerings, we invite you to contact our technical sales team for detailed specifications and integration support.
