▶ Overview
The PC321 ZigBee 3-Phase Clamp Energy Meter is a professional, non-intrusive power monitoring solution designed for residential, commercial, and light-industrial energy management projects. Using split-core current transformer (CT) clamps, it delivers accurate real-time energy measurement without cutting cables or interrupting power, making it ideal for both new installations and retrofit projects.
Available in both Tuya and MQTT versions, the PC321 supports flexible integration with smart energy management platforms, including Home Assistant. It is well suited for sub-metering, solar energy monitoring, EV charging, HVAC systems, and building energy management applications where reliable wireless communication and scalable deployment are essential.
As part of OWON's smart energy portfolio, the PC321 can work alongside ZigBee gateways, smart relays, and other energy management devices, enabling integrated monitoring and automation for residential, commercial, and industrial energy projects.
▶ Main Features
• ZigBee 3.0 compliant
• Compatible with single-phase, split-phase, and three-phase electrical systems
• Split-core CT clamp design for fast, non-intrusive installation
• Measures real-time voltage, current, frequency, power factor, active power, and total energy consumption
• Available in Tuya and MQTT versions for flexible platform integration
• Optional external antenna for extended ZigBee communication range
• Suitable for residential, commercial, and light-industrial energy monitoring projects

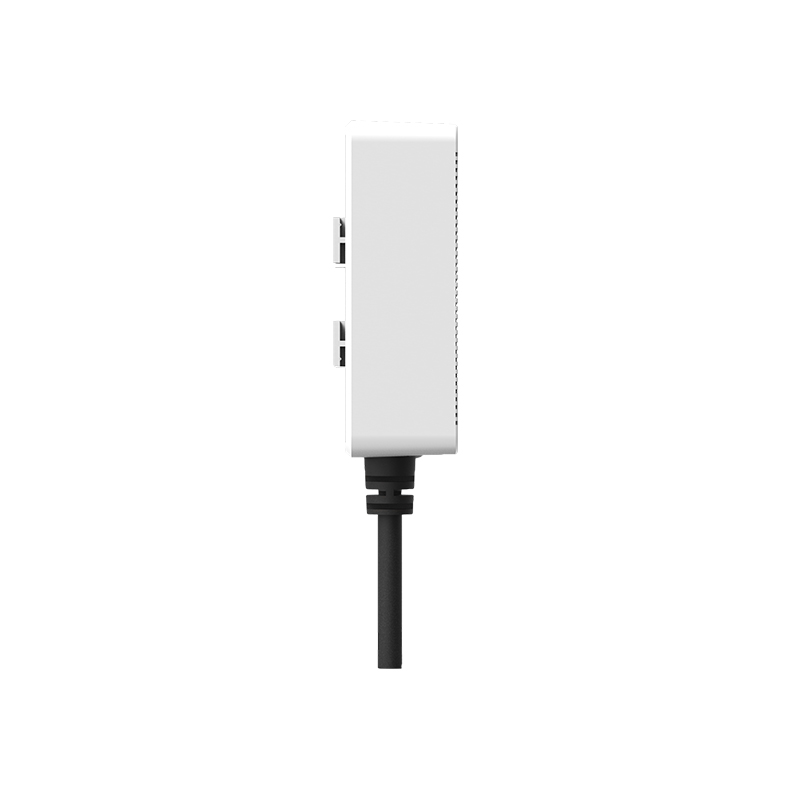

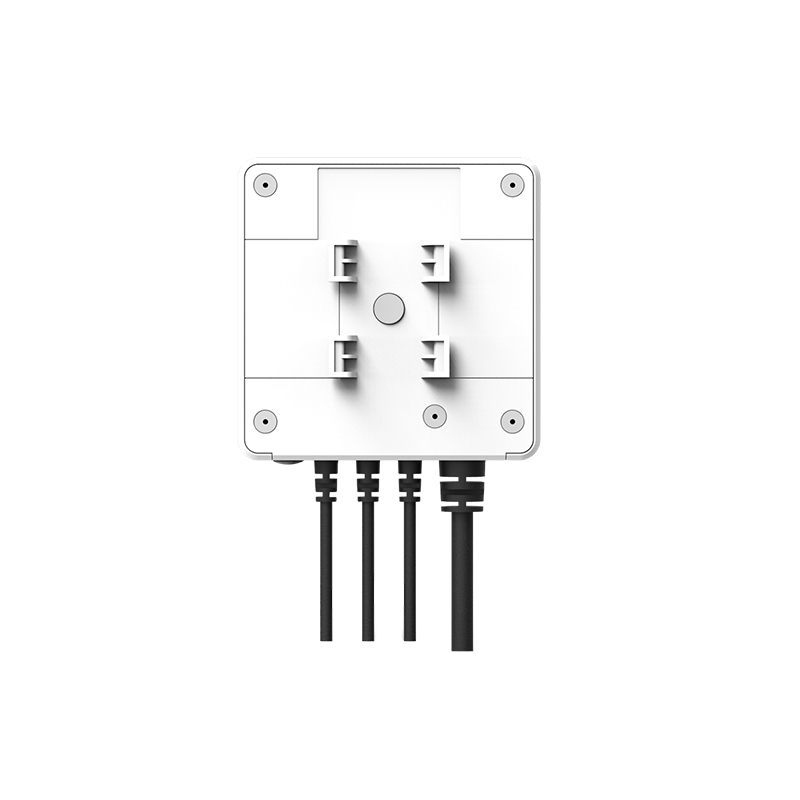

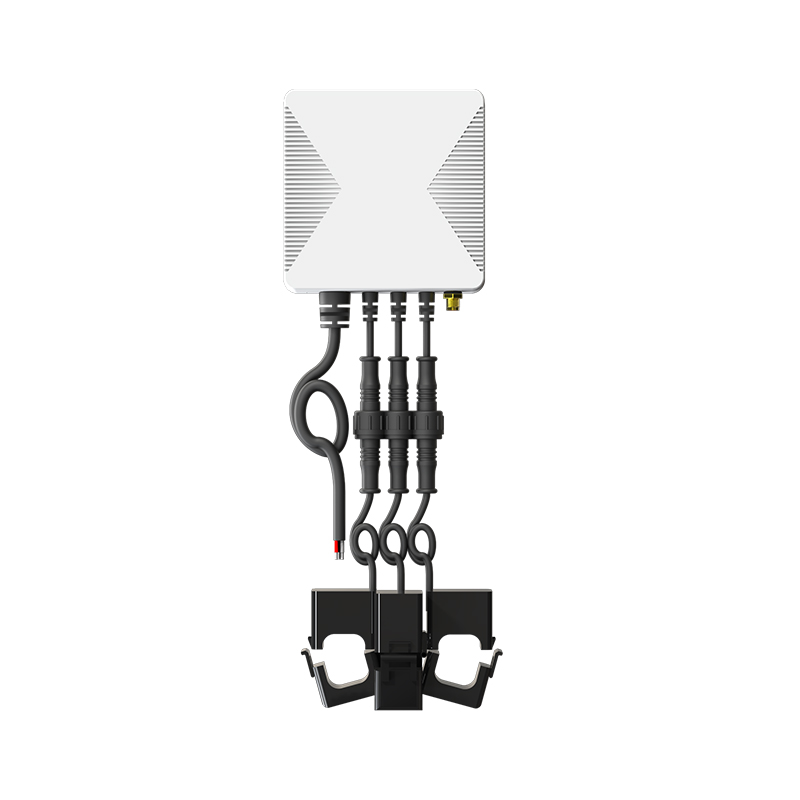

▶ Product:
▶Application:
• Three-phase energy monitoring for commercial buildings, hotels, apartments, and senior living communities.
• Circuit-level monitoring of HVAC systems, pumps, compressors, and other high-load electrical equipment.
• Solar PV and battery storage monitoring, including energy consumption, solar production, and self-consumption analysis.
• Residential and commercial EV charging monitoring to optimize charging efficiency and electricity usage.
• Sub-metering projects for property management, tenant billing, and building energy management systems (BMS).
• OEM and system integration projects requiring ZigBee communication with Tuya or MQTT-based energy management platforms.
▶Flexible Installation for Multiple Power Systems
The PC321 ZigBee Smart Energy Meter supports multiple electrical system configurations, including single-phase, split-phase, and three-phase installations.
▶ Video:
▶ Packgae:
▶ Main Specification:
| Wireless Connectivity | 2.4GHz IEEE 802.15.4 |
| ZigBee Profile | ZigBee 3.0 |
| Range outdoor/indoor | 100m/30m |
| Operating Voltage | 100~240 Vac 50/60 Hz |
| Electrical parameters measured | Irms, Vrms, Active Power & Energy, Reactive Power & Energy |
| CT Provided | • 80A (default): 10mm • 120A (optional): 16mm • 200A (optional): 20mm • 300A (optional): 24mm |
| Calibrated Metering Accuracy | • ≤ 100W Within ±2W • >100W Within ±2% |
| Antenna | Internal Antenna (default) External Antenna (optional) |
| Output Power | Up to +20dBm |
| Dimension | 86(L) x 86(W) x 37(H) mm |
| Weight | 415g |
