Tuya Multi-Circuit Power Meter WiFi | Three-Phase & Split phase

Main Feature:

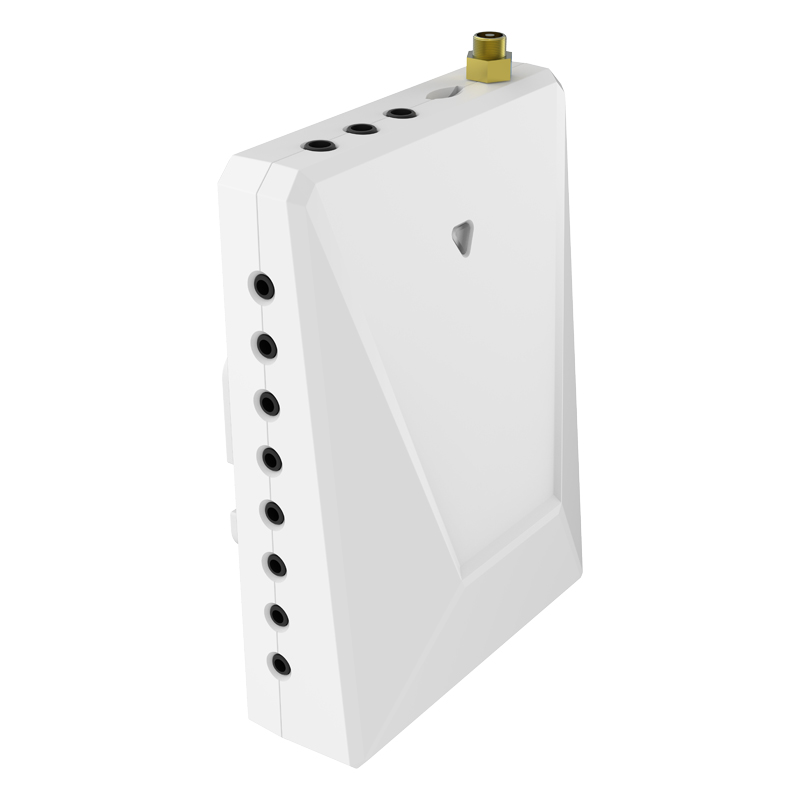

PC341 Wi-Fi energy meter with Tuya integration,helps you monitor the amount of electricity Consumed and Produced in your facility by connecting the clamp on to the power cable. Monitor whole home Energy and up to 16 individual circuits. Ideal for BMS, solar, and OEM solutions. Real-time monitoring & remote access.


  • Model: PC 341-3M16S-W-TY
  • Dimension: 111.3L x 81.2W x 41.4H mm
  • Weight: 415g (main unit)
  • Certification: CE,RoHS




  • Product Detail

    Product Tags

    Main Features:

    • Tuya compliant. Support automation with other Tuya device by export and import of grid or other energy values
    • Single, Split-Phase 120/240VAC, 3-Phase/4-wire 480Y/277VAC electricity system compatible
    • Remotely monitor whole home Energy and up to 2 individual circuits with 50A Sub CT, like Solar, lighting, receptacles
    • Bi-Directional measurement:Show how much energy you are producing, energy consumed and excess energy back to the grid
    • Real-time Voltage, Current, PowerFactor, ActivePower, Frequency measurement
    • Historical data of Energy Consumed and Energy Production is displayed in Day, Month, Year
    • External antenna prevents signal from being shielded

    Product:

    Split-Phase (US)

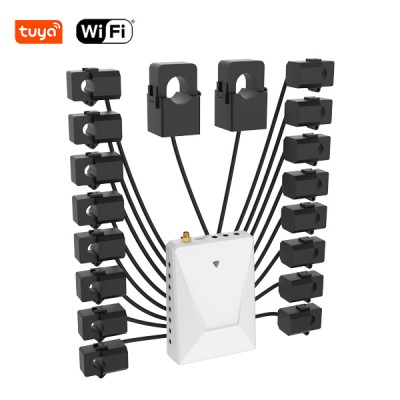

    WIFI Multi-Circuit Energy Meter, support Split-phase for US,with 2*200A Main CT+16*50A sub CT Clamp
    WIFI Multi-Circuit Power Meter, support Split-phase for US,with 2*200A Main CT Clamp

    PC341-2M16S-W

    (2*200A Main CT &16*50A Sub CT)

    PC341-2M-W

    (2* 200A Main CT)

    Three-Phase (EU)

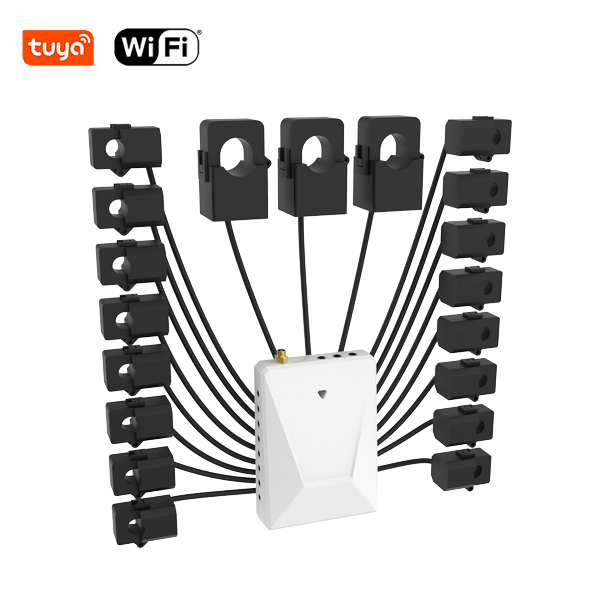

    PC341-3M16S副图1

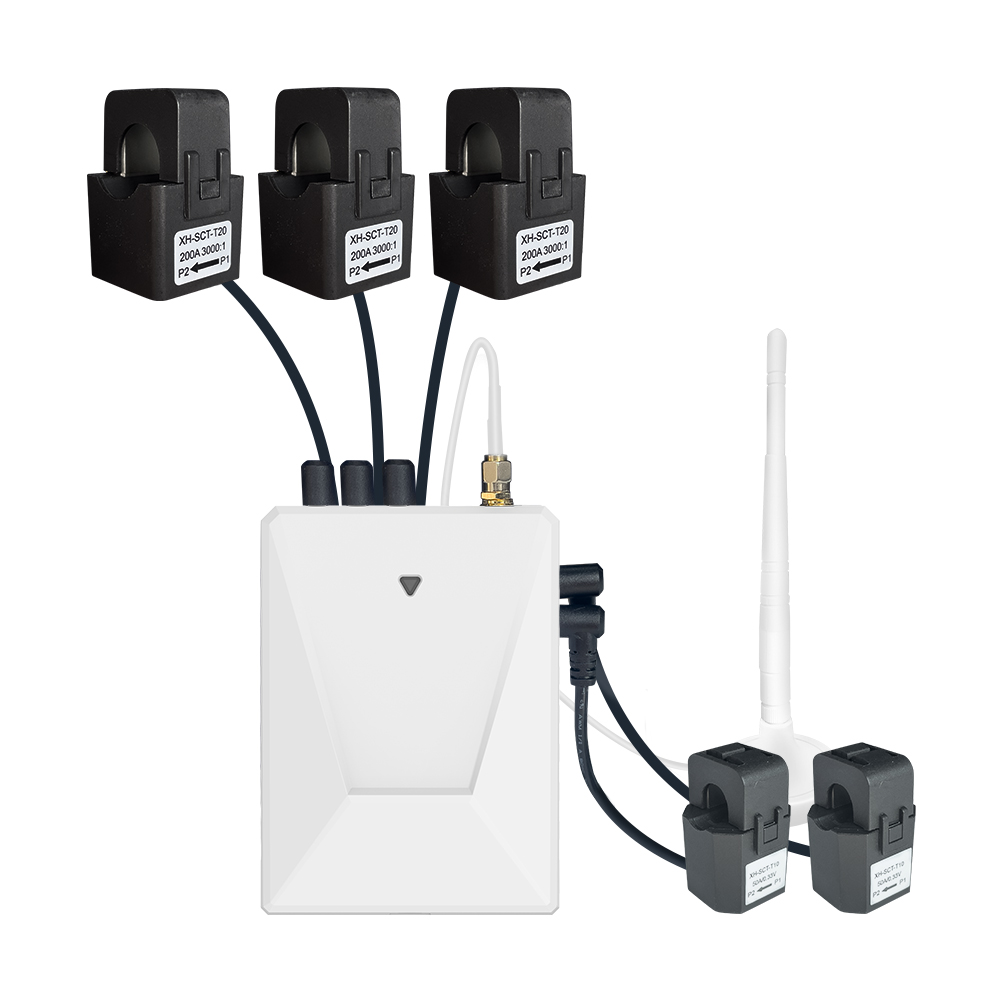

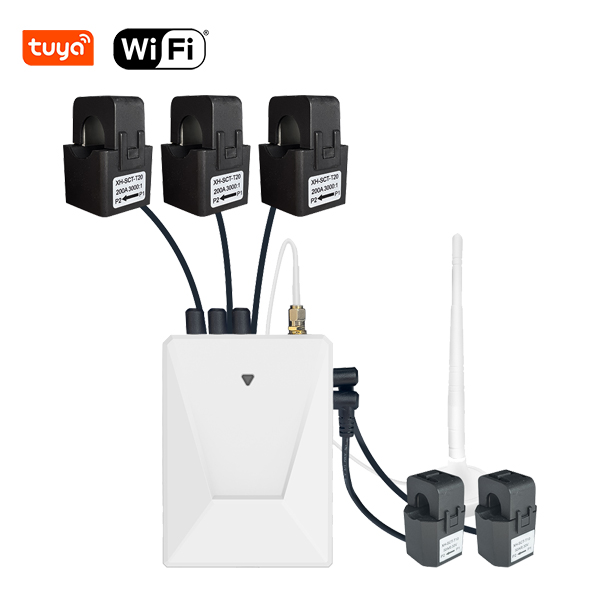

    WIFI Multi-Circuit Power Meter,with 3*200A Main CT Clamp,support 3-phase power systems for EU

    PC341-3M16S-W

    (3*200A Main CT & 16*50A Sub CT)

    PC341-3M-W

    (3*200A Main CT)

    FAQ:

    Q1: What power systems does PC341 support?
    A: It is compatible with single-phase (240VAC), split-phase (120/240VAC, North America), and three-phase four-wire systems up to 480Y/277VAC. (Delta connection is not supported.)

    Q2: How many circuits can be monitored simultaneously?
    A: In addition to the main CT sensors (200A/250A), PC341 supports up to 16channels 50A sub-circuit CTs, enabling monitoring of lighting, socket, or solar branch circuits independently.

    Q3: Does it support bidirectional energy monitoring?
    A: Yes. Smart energy meter(PC341) measures both energy consumption and generation from PV/ESS, with feedback to the grid, making it ideal for solar and distributed energy projects.

    Q4: What is the data reporting interval?
    A: The Wifi power meter uploads real-time measurements every 15 seconds, and also stores daily, monthly, and yearly energy history for analysis.

    Why Choose OWON

    • 30+ years of experience in smart power meter hardware manufacturing
    • ISO9001:2015 certified OEM/ODM provider
    • Seamless integration with Tuya IoT platform
    • Bulk-ready production, full customization
    • Trusted by global smart building & solar integrators
    Owon Smart Meter, certified , features high-precision measurement and remote monitoring capabilities. Ideal for IoT electricity management scenarios, it complies with international standards, guaranteeing safe and efficient power usage.
