| Model | SLC611 | SLC621 |
|---|---|---|
| Product Type | Power Meter with Relay | ZigBee Smart Switch with Power Meter |
| Max. Load Current | 10A Dry contact (resistive load: 10A 220Vac) | 16A Dry contact |
| Core Measurement & Control Features | - Measures wattage (W), kWh, real-time Voltage, Current, PowerFactor, Active Power
- Supports Energy Usage/Production measurement - Has Switch input terminal - Enables App control and scheduling |
- Measures wattage (W) and kWh
- No mention of Voltage/Current/PowerFactor measurement - No mention of Switch input terminal - Enables App control and scheduling |
| Wireless Connectivity Details | ZigBee 3.0, 2.4GHz, with Internal antenna | ZigBee 3.0, 2.4GHz (compliant with IEEE 802.15.4), no mention of antenna type |

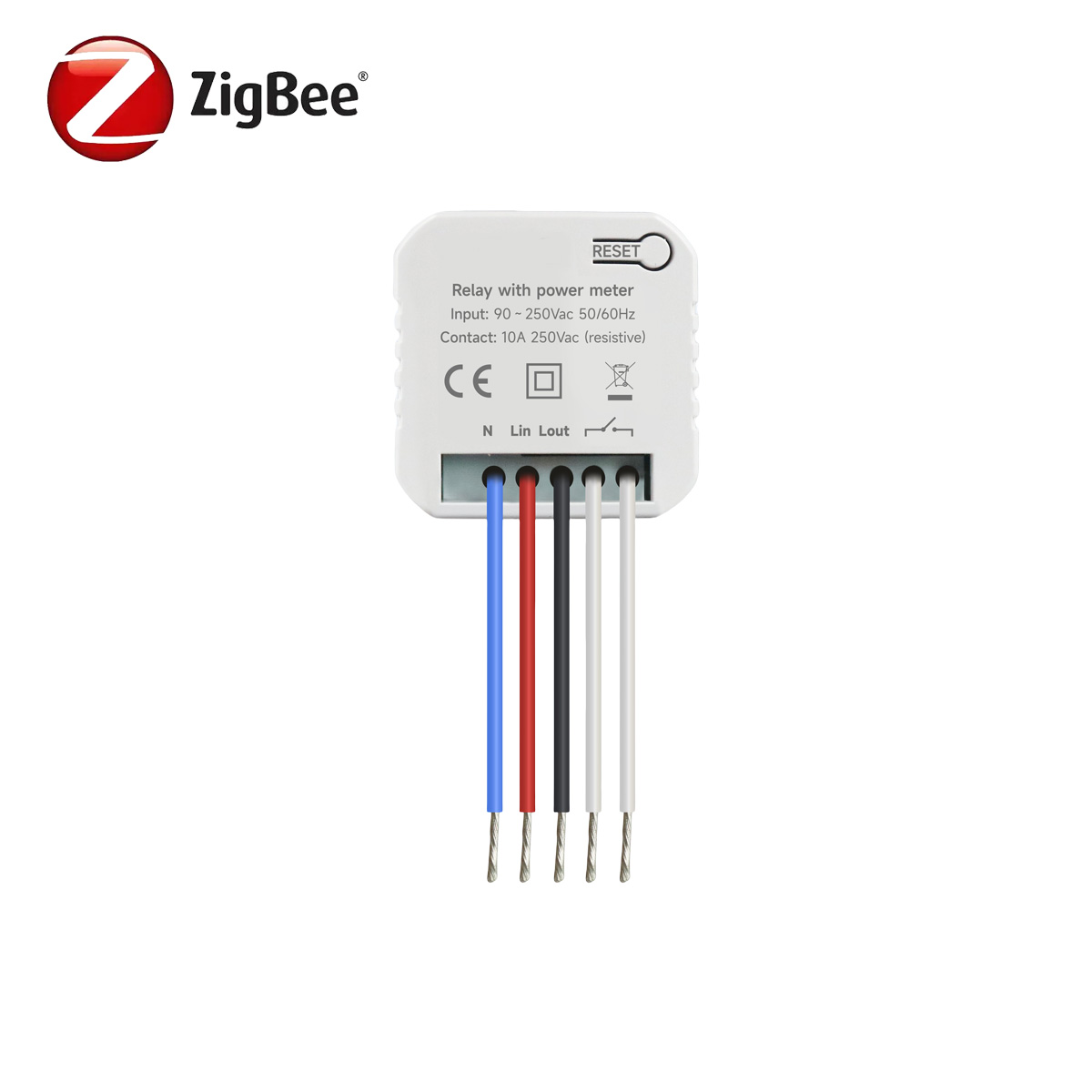

SLC621:
Main Features
• ZigBee 3.0
• Measure the instantaneous and accumulative energy usage of the connected devices
• Schedule the device to automatically power electronics on and off
• 16A Dry contact output
• Lightweight and easy to install
• Extend the range and strengthen ZigBee network communication

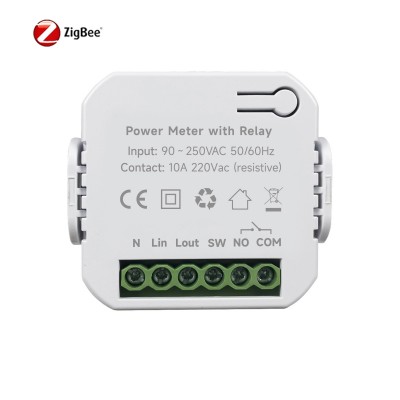

SLC611:
Main Features
• ZigBee 3.0
• Single phase electricity compatible
• Measure the instantaneous and accumulative energy usage of the
connected devices
• Measures real-time Voltage, Current, PowerFactor, Active Power
• Support Energy Usage/Production measurement
• Support Switch input terminal
• Schedule the device to automatically power electronics on and off
• 10A Dry contact output
• Lightweight and easy to install
• Extend the range and strengthen ZigBee network communication
Application Scenarios
The SLC611-Z and SLC621-M-Z excel in various smart energy management and home/industrial automation use cases:
Residential energy management, enabling remote On/Off control and real-time energy consumption monitoring (including wattage (W) and kilowatt hours (kWh)) of connected devices such as lamps, space heaters, fans, and small household appliances via mobile App.
Smart device automation via scheduling, allowing users to set timed On/Off operations for electronics (e.g., decorative lights, daily-use appliances) to optimize energy usage and enhance convenience.
ZigBee network enhancement, functioning as mesh nodes to extend the communication range and strengthen the stability of ZigBee networks, thereby improving connectivity for other compatible smart devices in the system.
Small-scale commercial and industrial energy monitoring & control (e.g., in offices, convenience stores), leveraging their 35mm Din Rail installation design for easy integration into distribution boxes, and supporting load control via dry contact outputs to manage energy consumption of small commercial appliances while tracking accumulative and instantaneous energy usage.
OEM components for energy solution providers, offering smart energy monitoring and control upgrades for scenarios like residential complexes, rental properties, and small commercial spaces, thanks to their lightweight design, easy installation, and reliable energy measurement capabilities (with accuracy of ±2W for loads ≤100W and ±2% for loads >100W).
About OWON
OWON is your trusted OEM/ODM factory for ZigBee-based smart plugs, wall switches, dimmers, and relay controllers.
Designed for compatibility with major smart home platforms and building management systems (BMS), our devices meet the needs of smart home retailers, property developers, and system builders.
We support product branding, firmware customization, and private protocol development to meet unique project requirements.
