Installing a smart thermostat can become complicated when the existing HVAC wiring does not include a C-wire. Many modern WiFi thermostats require continuous low-voltage power for connectivity, displays, sensors and smart control functions.
A C wire adapter for smart thermostat installation can provide a practical solution for certain compatible 24VAC HVAC systems. Instead of immediately running a new thermostat cable through the wall, homeowners and HVAC professionals can first determine whether an existing wire or C-wire adapter can solve the power problem.
This guide explains what a C-wire adapter does, what to do when there is no C-wire, and how to choose the right power solution for a smart thermostat.
What Is a C-Wire Adapter for a Thermostat?
The C-wire, or common wire, is part of the low-voltage electrical circuit used to provide continuous power to many modern thermostats.
North American central HVAC systems commonly use 24VAC control circuits. Typical thermostat terminals may include:
- R/Rc – 24VAC power
- C – common
- W – heating
- Y – cooling
- G – fan
- O/B – heat pump reversing valve
Older thermostats often required less continuous power, so some existing homes have only three or four conductors running to the thermostat.
A C-wire adapter or compatible power module can help address this problem in certain installations without requiring a completely new thermostat cable.
What to Do If There Is No C-Wire for a Thermostat
If you remove an old thermostat and cannot find a wire connected to the C terminal, it does not necessarily mean that new wiring is required.
There are several options to check.
1. Look for an Unused Wire
Some thermostat cables contain an extra conductor that was never connected. If an unused wire is available, it may be possible to use it as the common connection after the HVAC-side wiring is properly configured.
2. Check the HVAC Control Board
The HVAC equipment may already have a C terminal even though no common wire reaches the thermostat.
Checking both ends of the thermostat cable is important before deciding that the system has no C-wire option.
3. Use a C-Wire Adapter
When the existing wiring is compatible, a C wire adapter for smart thermostat installation may allow a smart thermostat to receive the required power without pulling another wire through the wall.
4. Run a New Thermostat Wire
Running a new cable can be a good solution during renovation, new construction or whenever the thermostat wiring is easily accessible.
The correct approach depends on the HVAC equipment, thermostat requirements and existing wiring.
How Does a C-Wire Adapter Work?
A C-wire adapter or power module helps provide the electrical connection required by a compatible smart thermostat when the existing thermostat cable does not provide a usable common wire.
The exact installation method varies by adapter and HVAC system. Some solutions are designed to work with existing thermostat conductors, reducing the need to open walls and install additional cable.
However, a C-wire adapter should not be treated as a universal accessory.
Before installation, check:
| What to Check | Why It Matters |
|---|---|
| HVAC control voltage | Many North American systems use 24VAC |
| Thermostat power requirement | Different thermostat designs may require different power methods |
| Existing terminals | R, C, W, Y, G and O/B configurations can vary |
| Available conductors | An unused wire may already be available |
| Adapter compatibility | The adapter must match the thermostat and HVAC configuration |
Do not identify thermostat wiring by wire color alone. Terminal connections and equipment documentation should be used to verify the wiring.
C-Wire Adapter vs. Running a New C-Wire
Users without a C-wire generally have to decide whether to adapt the existing wiring or install a new conductor.
Both approaches have advantages.
A new C-wire can be a straightforward long-term solution when the wiring route is accessible or the building is already being renovated.
A C-wire adapter can be useful for retrofit projects where running a new thermostat cable through finished walls would increase installation time and complexity.
For larger residential, apartment or light commercial retrofit projects, avoiding unnecessary rewiring can also simplify deployment across multiple HVAC systems.
The best option should be determined by the actual HVAC installation rather than simply choosing the fastest method.
Is a 24 Volt Adapter for Thermostat the Same as a C-Wire Adapter?
Not always.
People searching for a 24 volt adapter for thermostat are often trying to solve the same problem: providing continuous low-voltage power to a smart thermostat.
However, a generic 24V power supply and a C-wire adapter designed for HVAC thermostat wiring are not necessarily interchangeable.
Many North American central HVAC systems use 24VAC, meaning 24-volt alternating current. Therefore, installers should verify:
- AC or DC output
- Required voltage
- Thermostat power requirements
- R and C connections
- HVAC control-board wiring
- Adapter installation method
A device being rated for “24V” alone does not guarantee that it is suitable for a particular thermostat installation.
How to Choose a C Wire Adapter for Smart Thermostat Installation
Compatibility should be the first consideration when choosing a C wire adapter for smart thermostat installation.
Start by identifying the HVAC system type and thermostat wiring. Then confirm whether the thermostat requires continuous 24VAC power and whether the proposed adapter is designed for that wiring configuration.
For heat pump systems, installers should also pay attention to terminals such as O/B and any auxiliary or emergency heating connections. A power solution should not interfere with the thermostat’s ability to control the HVAC equipment correctly.
For professional retrofit projects, a pilot installation is useful before deploying a thermostat and adapter combination across multiple properties.

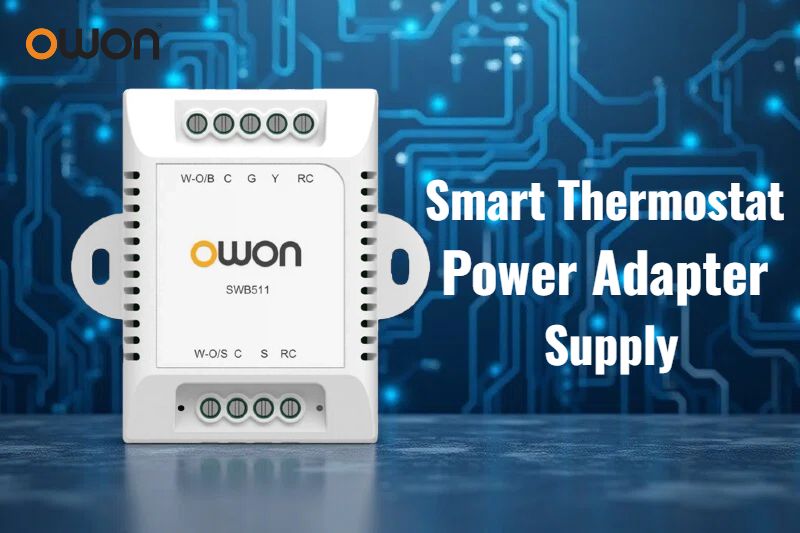

SWB511 24VAC C-Wire Adapter for Smart Thermostats
For compatible 24VAC thermostat installations, OWON provides the SWB511 C-wire adapter as a compact power solution for smart thermostat retrofit projects.
The SWB511 operates at 24VAC and measures 64 × 45 × 15 mm. It weighs approximately 8.8 g and has a specified operating temperature range of -20°C to +55°C.
The adapter can be considered for compatible smart thermostat installations where the existing wiring does not provide the required C-wire arrangement and installing additional thermostat cable would add unnecessary work.
For HVAC contractors, distributors, system integrators and OEM/ODM thermostat projects, the C-wire adapter can also be evaluated together with the thermostat as part of a complete retrofit solution.
Actual compatibility should always be confirmed against the thermostat, HVAC equipment and existing wiring before installation.
C-Wire Adapters for HVAC Retrofit Projects
C-wire compatibility becomes especially important when smart thermostats are installed across multiple homes, apartments or light commercial properties.
Before a larger deployment, HVAC professionals should evaluate:
Existing wiring: Determine how many thermostat conductors are available and whether a common connection already exists.
HVAC compatibility: Confirm that the thermostat supports the actual conventional or heat pump system.
Power requirements: Verify the required control voltage and power method.
Adapter compatibility: Test the proposed thermostat and C-wire solution together.
Installation consistency: Older properties may contain different wiring configurations even within the same building or project.
Evaluating these factors before deployment can reduce installation problems and unnecessary rewiring.
Frequently Asked Questions
What is a C-wire adapter for a thermostat?
A C-wire adapter is a device or power module used in certain compatible HVAC installations when the existing thermostat wiring does not provide the common connection required by a smart thermostat.
What should I do if there is no C-wire for my thermostat?
First check for an unused conductor and confirm whether the HVAC control board has a C terminal. Depending on the system, possible solutions include using an available conductor, installing a compatible C-wire adapter or running new thermostat wiring.
How do I run a C-wire for a smart thermostat?
A suitable conductor must connect the appropriate common terminal at the HVAC equipment to the thermostat according to the system wiring requirements. If the wiring is unclear or inaccessible, a qualified HVAC technician should evaluate the installation.
Can I use a 24 volt adapter for thermostat power?
Possibly, but the voltage rating alone is not enough. Check whether the thermostat requires 24VAC, how power is connected and whether the adapter is appropriate for the specific HVAC control circuit.
Does every smart thermostat need a C-wire?
No. Power requirements vary by thermostat design and HVAC configuration. Some thermostats require a dedicated common connection, while others may support alternative manufacturer-approved power methods.
Can one C-wire adapter work with every smart thermostat?
No. C-wire adapters are not universally interchangeable. Compatibility depends on the thermostat, HVAC equipment, control voltage, wiring and installation method.
Choosing the Right C-Wire Solution
A missing C-wire does not necessarily prevent an older HVAC system from being upgraded with a smart thermostat.
Depending on the existing installation, the solution may be an unused conductor, new thermostat wiring or a compatible C wire adapter for smart thermostat installation. For users considering a 24 volt adapter for thermostat power, it is equally important to verify that the voltage type and wiring method match the HVAC system.
For compatible 24VAC HVAC applications, the OWON SWB511 provides a compact C-wire solution that can be evaluated as part of a smart thermostat retrofit project.
