ZigBee smart plug (US) | Energy Control & Management

Main Feature:

The Smart plug WSP404 allows you to switch your devices on and off and allows you to measure power and record total used power in kilowatt hours (kWh) wirelessly via your mobile App.

Model: WSP 404-Z

Dimensions: 130 (L) x 55(W) x33(H) mm

Weight: 120 g

Certification: CE,RoHS

Send Inquiry Download of Datasheet Download of Manual

Product Detail

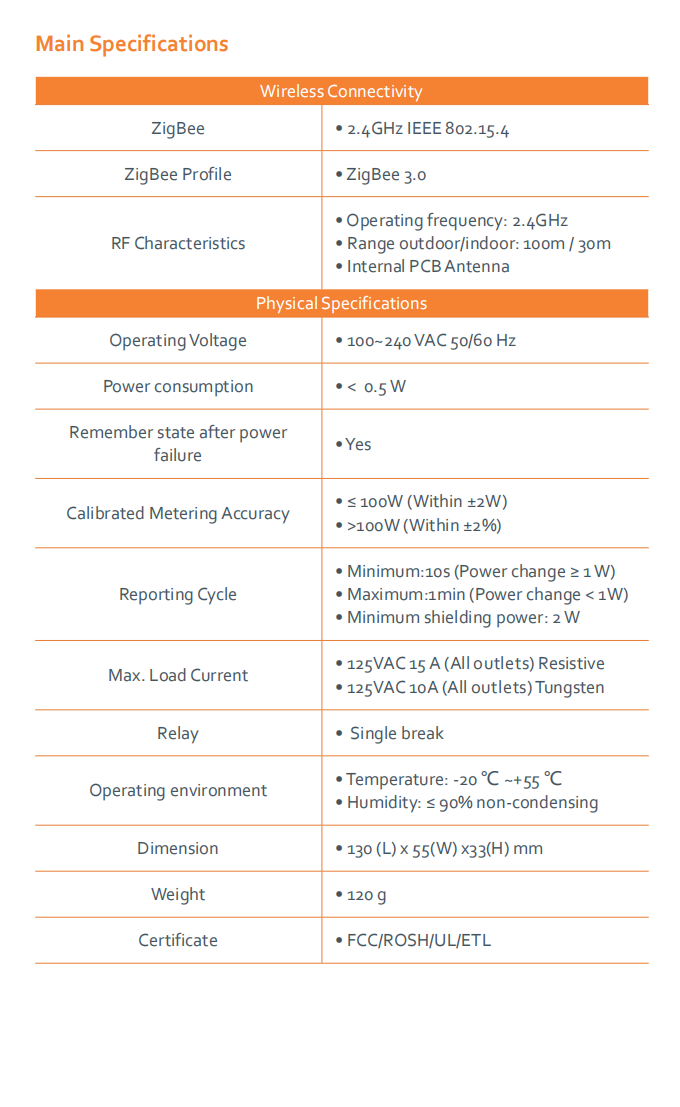

Main Spec

Product Tags

Main Features:

• Complies with ZigBee 3.0 to work with any standard ZigBee Hub

• Converts your home appliances to smart devices, such as lamps, space

heaters, fans, window A/Cs, decorations, and more

• Controls your home devices on/off remotly and automates your home by scheduling via the Mobile APP

• Measures the instantaneous and accumulative energy consumption of the connected devices

• Switches on/off the Smart Plug manually using the toggle button on the front panel

• Slim design fits with standard wall outlet

• Supports two devices per plug by providing two outlets (one at each side)

• Extends the range and strengthens ZigBee network communication

Product:

OEM/ODM Flexibility for Smart Energy Integrators

The WSP404 is a ZigBee 3.0 smart plug (US standard) designed for energy monitoring and remote control of home appliances, enabling seamless integration into smart energy management ecosystems. OWON offers comprehensive OEM/ODM support to meet custom requirements: Firmware compatibility with ZigBee 3.0 (2.4GHz IEEE 802.15.4) for universal connection with standard ZigBee hubs Custom branding, casing, and design options for white-label deployment in energy control solutions Seamless integration with ZigBee-based smart home systems, energy management platforms, and proprietary hubs Support for large-scale deployments, ideal for residential, multi-dwelling, and light commercial projects

Compliance & User-Centric Design

Engineered for reliable performance and intuitive operation in diverse energy control scenarios: Certified by FCC/ROSH/UL/ETL, ensuring safety and compliance with global standards Low power consumption (<0.5W) and wide operating voltage (100~240VAC 50/60Hz) for versatile use High-precision energy metering (≤100W: ±2W; >100W: ±2%) with real-time and cumulative consumption tracking Slim design (130x55x33mm) fitting standard wall outlets, with two side outlets supporting up to two devices simultaneously Manual toggle button for on/off control without app access, plus power failure memory to retain last state Durable construction adapting to harsh environments (temperature: -20℃~+55℃; humidity: ≤90% non-condensing)

Application Scenarios

The WSP404 excels in various smart energy and home automation use cases: Residential energy management, enabling remote control and consumption monitoring of lamps, space heaters, fans, and window A/Cs Smart home automation via scheduling (e.g., timed operation of decorations or appliances) to optimize energy usage Multi-device control in compact spaces, supporting two appliances per plug without blocking adjacent outlets Strengthening ZigBee networks (30m indoor/100m outdoor range) as a mesh node, enhancing connectivity for other smart devices OEM components for energy solution providers offering smart plug upgrades in hospitality, rental properties, or residential complexes

Application:

Shipping:

About OWON

OWON is your trusted OEM/ODM factory for ZigBee-based smart plugs, wall switches, dimmers, and relay controllers.
Designed for compatibility with major smart home platforms and building management systems (BMS), our devices meet the needs of smart home retailers, property developers, and system builders.
We support product branding, firmware customization, and private protocol development to meet unique project requirements.
