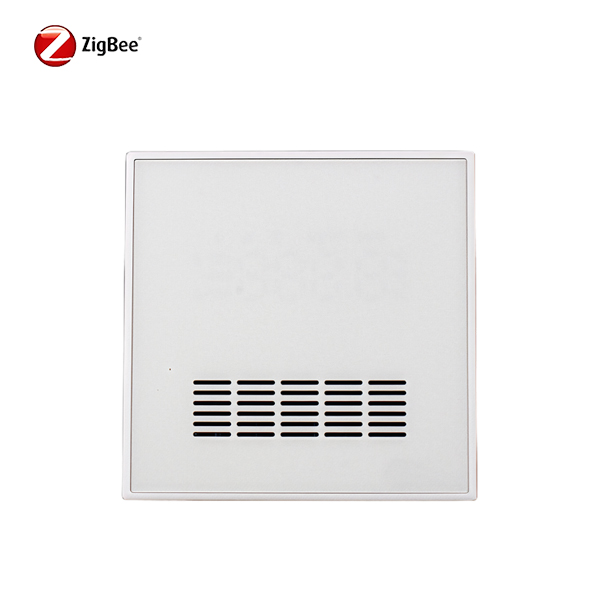

Zigbee Air Quality Sensor | CO2, PM2.5 & PM10 Monitor

Main Feature:

Zigbee air quality sensor for real-time indoor air quality monitoring, measuring CO2, PM2.5, PM10, temperature, and humidity. Ideal for BMS, HVAC automation, and smart building IAQ control. Features NDIR CO2 sensing, LED display, and seamless Zigbee 3.0 integration.

Model: AQS364-Z

Dimension: 86mm x 86mm x 40mm

Weight: 168g

Certification: CE,RoHS

Send Inquiry Download of Datasheet Download of Manual

Product Detail

Main Spec

Product Tags

Main Features

• Use LED display screen

• Indoor air quality level: Excellent, Good, Poor

• Zigbee 3.0 wireless communication

• Monitor the data of Temperature/Humidify/CO2/PM2.5/PM10

• One key to switch the display data

• NDIR sensor for CO2 monitor

• Customized mobile AP

zigbee smart air quality sensor CO2 PM2.5 PM10 air quality detector

Application Scenarios

· Smart Home IAQ Monitoring
Automatically adjust air purifiers, ventilation fans, and HVAC systems based on real-time CO2 or particulate data.
· Schools & Educational Buildings
CO2 control improves concentration and supports indoor ventilation compliance.
· Offices & Meeting Rooms
Monitors occupancy-related CO2 buildup to regulate ventilation systems.
· Medical & Healthcare Facilities
Track particulate levels and humidity to maintain safe indoor air quality.
· Retail, Hotels & Public Spaces
Real-time IAQ display improves transparency and enhances visitor confidence.
· BMS / HVAC Integration
Paired with Zigbee gateways to support automation and data logging in smart buildings.

▶ Shipping:

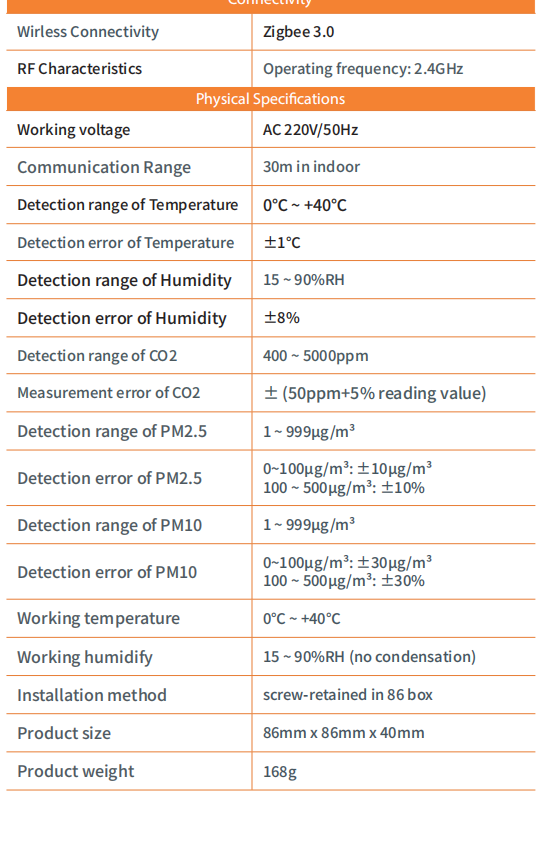

Connectivity
Wirless Connectivity	Zigbee 3.0
RF Characteristics	Operating frequency:2.4GHz
Physical Specifications
Working voltage	AC 220V/50Hz
Communication Range	30m in indoor
Detection range of Temperature	0℃~+40℃
Detection error of Temperature	±1℃
Detection range of Humidity	15~90%RH
Detection error of Humidity	±8%
Detection range of CO2	400~5000ppm
Measurement error of CO2	±(50ppm+5%reading value)
Detection range of PM2.5	1~999μg/m³
Detection error of PM2.5	0~100μg/m³:±10μg/m³ 100~500μg/m³:±10%
Detection range of PM10	1~999μg/m³
Detection error of PM10	0~100μg/m³:±30μg/m³ 100~500μg/m3:±30%
Working temperature	0℃~+40℃
Working humidify	15～90%RH(no condensation)
Installation method	screw-retained in 86 box
Product size	86mmx86mmx40mm
Product weight	168g
