Main features:
• Tuya APP compliant
• Support linkage with other Tuya devices
• Single/3 - phase system compatible
• Measures real-time Voltage, Current, PowerFactor, Active Power and frequency
• Support Energy Usage/Production measurement
• Usage/Production trends by hour, day, month
• Lightweight and easy to install
• Support Alexa, Google voice control
• 16A Dry contact output
• Configurable on/off schedule
• Overload protection
• Power-on status setting
Smart Energy Monitoring and Load Control
The PC473-Z enables continuous energy monitoring by connecting current clamps directly to power cables. This non-intrusive measurement method allows accurate tracking of power consumption without disrupting existing wiring.
By combining energy measurement and relay control, the PC473 supports:
• Real-time load monitoring
• Remote switching of connected circuits
• Schedule-based load management
• Energy optimization strategies in smart buildings
This makes the PC473 well-suited for energy monitoring systems (EMS) and automation platforms that require both visibility and control.
Application Scenario
The PC473-Z is suitable for a wide range of smart energy and automation projects, including:
• Sub-metering and relay control in residential or light commercial buildings
• Energy monitoring in smart buildings and property management systems
• Integration into Tuya-based platforms for centralized energy visibility
• Load shedding and schedule-based control in smart panels
• Customized energy monitoring devices for HVAC systems, EV chargers, and high-demand equipment
• Smart grid pilots and distributed energy management projects
Shipping:
| Wireless Connectivity | |
| Wi-Fi | • 802.11b/g/n @2.4GHz |
| BLE | • Bluetooth 5.2 Low Energy |
| RF Characteristics | • Operating frequency: 2.4GHz• Internal antenna |

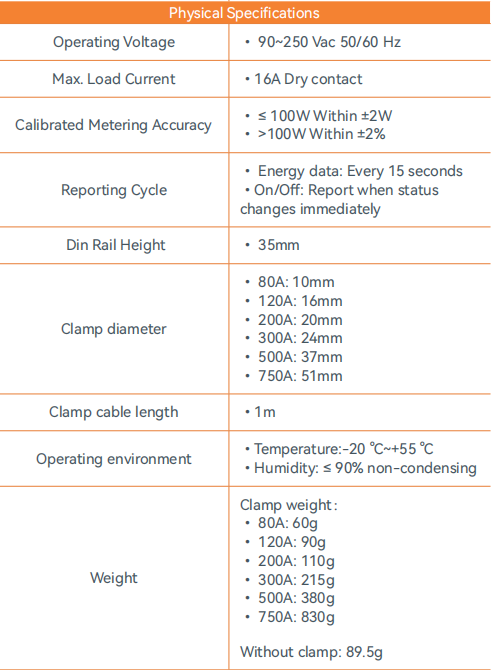

| Physical Specifications | |
| Operating Voltage | • 90~250 Vac 50/60 Hz |
| Max. Load Current | •16A Dry contact |
| Calibrated Metering Accuracy | • ≤ 100W Within ±2W• >100W Within ±2% |
| Reporting Cycle | • Energy data: Every 15 seconds•On/Off: Report when status changes immediately |
| Din Rail Height | • 35mm |
| Clamp diameter | • 80A: 10mm• 120A: 16mm
• 200A: 20mm • 300A: 24mm • 500A: 37mm • 750A: 51mm |
| Clamp cable length | •1m |
| Operating environment | •Temperature:-20 ℃~+55 ℃•Humidity: ≤ 90% non-condensing |
| Weight | Clamp weight：• 80A: 60g
• 120A: 90g • 200A: 110g • 300A: 215g • 500A: 380g • 750A: 830g Without clamp: 89.5g |
