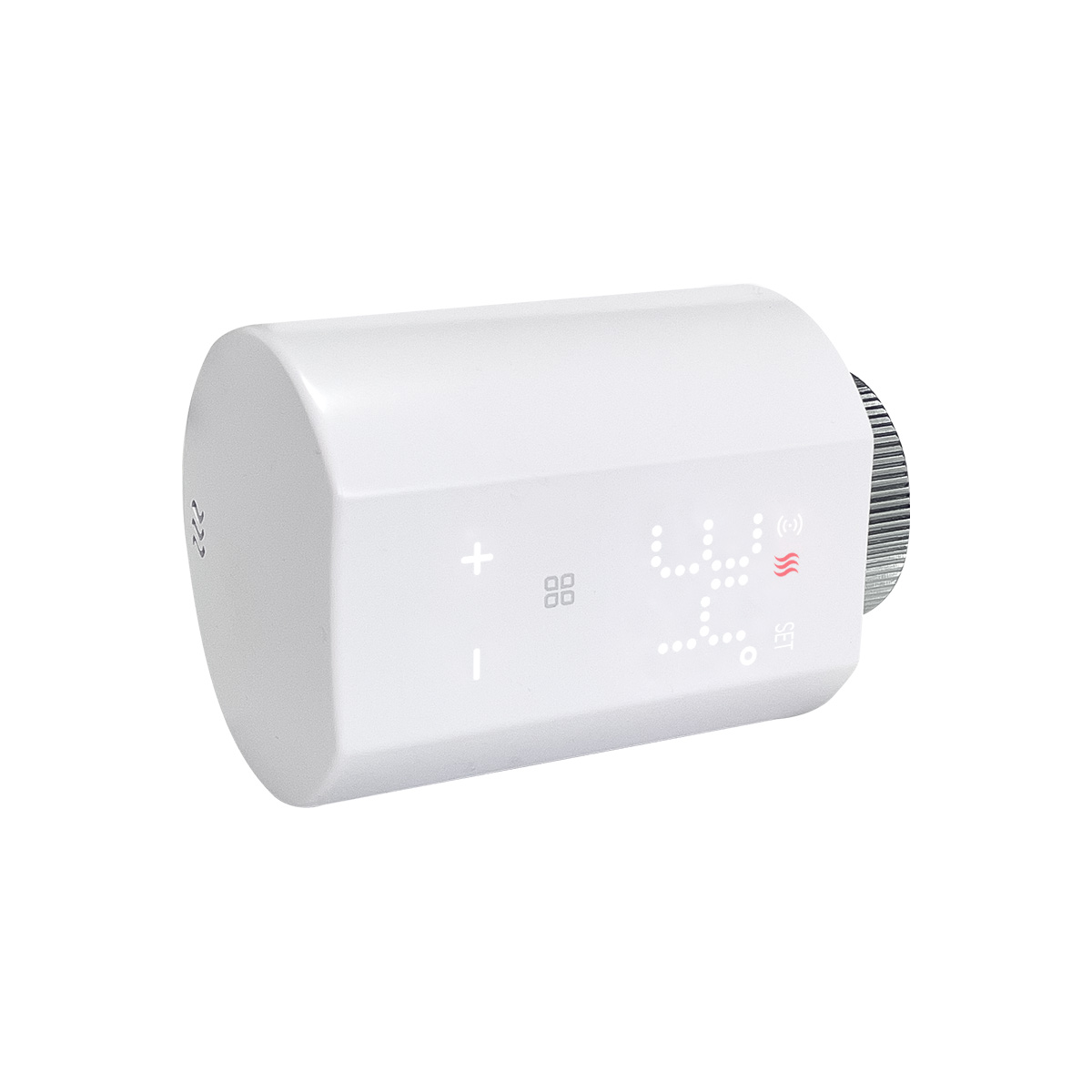

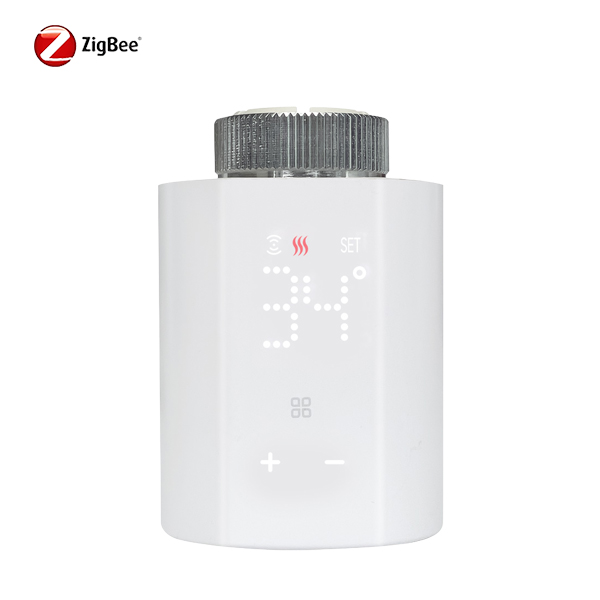

Tuya ZigBee Radiator Valve for Smart Heating Platforms | TRV507

Main Feature:

TRV507 is a Tuya-compatible ZigBee smart radiator valve designed for room-level heating control in residential and commercial smart heating systems.

Model: TRV507-TY

Dimension: 53 * 83.4mm

Weight: N/A

Certification: CE,RoHS

Send Inquiry Download of Datasheet Download of Manual

Product Detail

Main Spec

Product Tags

Main Features:

• Tuya compliant, Support automation with other Tuya device

• Color Led screen display for heating status and current mode

• Automatically turn on or off the radiator valve and reduce your energy consumption according to the schedule you set

• Set temperatures from the App or directly on the radiator valve itself by Touch-sensitive buttons

• Google Assistant & Amazon Alexa Voice control

• Open Window Detection, automatically turn off heating when you open a window to save you money

• Other features: Child Lock, Anti-scale, Anti-freezing, PID control algorithm, Low battery reminder, Two directions display

Product:

Application Scenarios

•Residential Heating Management
Enable residents to control radiator heating room by room, improving comfort while reducing energy waste.
•Smart Building & Apartment Projects
Ideal for multi-family housing, serviced apartments, and mixed-use buildings requiring scalable heating control without rewiring.
•Hotel & Hospitality Heating Control
Allow centralized temperature policies while still offering guest-level comfort adjustment.
•Energy Retrofit Projects
Upgrade existing radiator systems with smart control without replacing boilers or pipework, significantly lowering retrofit costs.
•OEM & Heating Solution Providers
Use TRV507-TY as a ready-to-deploy Zigbee component for branded smart heating solutions.

Why Choose a Zigbee Radiator Valve

Compared with Wi-Fi radiator valves, Zigbee TRVs offer:
• Lower power consumption for battery-powered operation
• More stable mesh networking in multi-room installations
• Better scalability for buildings with dozens or hundreds of valves

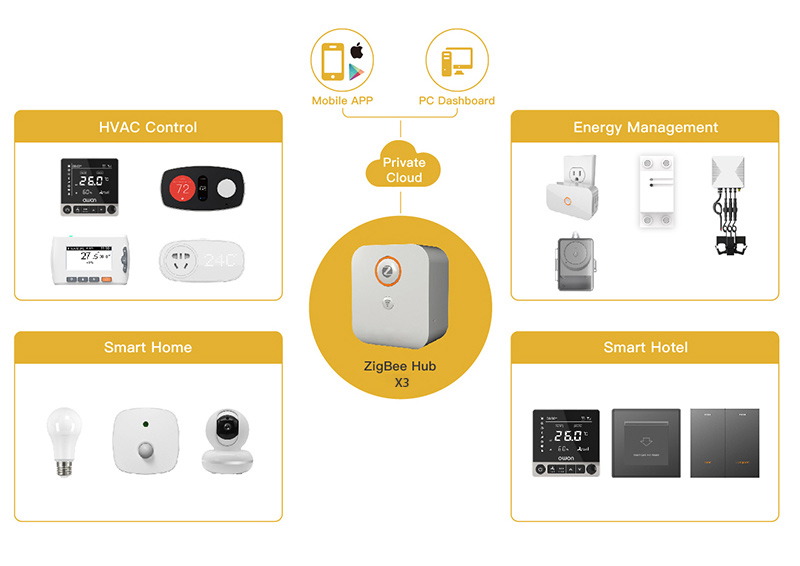

TRV507-TY fits seamlessly into Zigbee gateways, building automation platforms, and Tuya smart heating ecosystems.

Wireless Connectivity
ZigBee	• 2.4GHz IEEE 802.15.4
Physical Specifications
User Interface	•Color Led screen display•Touch-sensitive buttons
Adapter	•RA/RAV/RAVL/M28/Caleffi/ Giacomini
Operating Voltage	• 2 x AA alkaline batteries
Current Consumption	• 270mA Max
Protection Level	• IP20
Display Temperature	• 0~50°С
Surface Temperature	• 90°C Max (at the radiator)
Connection	• M30 x 1.5mm
Dimensions	•53mm x 83.4mm
