A WiFi home energy monitor helps homeowners understand how much electricity their home uses, when consumption is highest, and which circuits may be responsible for increased energy costs.
Unlike a conventional electricity meter that primarily records total consumption, a WiFi energy monitor can provide real-time readings and historical energy data through a compatible mobile app.
Some systems also support individual circuit monitoring, solar energy measurement, and integration with smart home platforms.
This guide explains how WiFi home energy monitors work, what features matter, and how to choose a suitable system.
What Is a WiFi Home Energy Monitor?
A WiFi home energy monitor is a device that measures household electricity usage and sends supported data to a connected monitoring platform.
Most CT-based systems include three main components:
- Energy meter: Measures electrical parameters and calculates power and energy consumption.
- Current transformers (CT clamps): Measure current flowing through selected electrical conductors.
- WiFi connection: Allows users to access readings through a compatible app or monitoring system.
Depending on the model, users can monitor voltage, current, active power, power factor, and accumulated electricity consumption in kilowatt-hours (kWh).
A WiFi monitor does not automatically replace the electricity meter installed by the utility company. It is generally used as an additional monitoring device.
How Does a WiFi Home Energy Monitor Work?
A CT-based WiFi energy monitor is usually installed near the home’s electrical distribution panel.
The CT clamps measure current in the selected conductors, while the meter uses the appropriate voltage reference to calculate electrical power and energy.
The monitoring process follows a simple path:
Electrical Panel → CT Clamps → Energy Meter → WiFi Network → Mobile App
Once configured, a compatible app can display current electricity usage and historical consumption.
For example, homeowners may notice that electricity demand increases when air conditioning, water heating, or other high-power appliances operate.
However, a whole-home monitor cannot always identify the exact appliance responsible for a change. That generally requires individual circuit monitoring or additional sensors.
Whole-Home vs Individual Circuit Energy Monitoring
Not all WiFi energy monitors provide the same level of detail.
Some measure the electricity used by the entire home, while others can monitor selected branch circuits.
| Monitoring Type | What It Measures | Best For |
|---|---|---|
| Whole-home monitoring | Total household electricity usage | Tracking overall consumption |
| Individual circuit monitoring | Electricity used by selected circuits | Identifying high-consumption circuits |
| Multi-circuit monitoring | Main supply and multiple branch circuits | Detailed home energy analysis |
| Bidirectional monitoring | Electricity flowing in both directions | Grid import and export monitoring |
For homeowners who only want to know how much electricity they use each day, whole-home monitoring may be sufficient.
For those who want to compare individual circuits, such as air conditioning, water heating, or kitchen appliances, a multi-circuit system provides more useful information.
Can a WiFi Home Energy Monitor Track Daily and Monthly Usage?
Yes. Many WiFi home energy monitors provide historical electricity data through their associated apps.
Depending on the model and platform, users may be able to review:
- Real-time power consumption in watts (W)
- Daily electricity consumption in kWh
- Monthly electricity usage trends
- Historical energy records
- Electricity import and export on supported models
This information helps homeowners understand when electricity is being used and whether consumption patterns change over time.
For example, comparing monthly electricity usage may reveal seasonal differences associated with heating or air conditioning.
An energy monitor does not directly reduce electricity bills. Savings depend on whether users identify and change inefficient energy usage.
WiFi Home Energy Monitor with Multiple CT Sensors
A WiFi smart home energy monitor with multiple CT sensors can provide more detailed information than a basic whole-home meter.
In a typical installation, main CT clamps measure the household supply, while additional CTs monitor selected branch circuits.
This is useful for homes with several major electrical loads.
When comparing systems, check:
- Number of supported CT channels
- Main and branch CT current ratings
- CT opening dimensions
- Single-phase or split-phase compatibility
- Available historical data
- App and platform integration
A system advertised with three 80A current sensors is not necessarily equivalent to a multi-circuit monitor with different main and branch CT ratings.
The number and size of CTs should match the electrical installation rather than being selected solely by the advertised sensor count.
Can a WiFi Energy Monitor Track Solar Power?
Some WiFi home energy monitors support bidirectional electricity measurement.
This allows them to distinguish electricity flowing into and out of a monitored connection.
For a home with solar panels, a meter installed at the grid connection may provide information about:
- Electricity imported from the grid
- Surplus electricity exported to the grid
- Changes in net electricity flow during the day
However, grid import/export monitoring is not the same as measuring total solar generation.
A separate measurement point may be required to monitor solar production independently.
Before purchasing a monitor for a solar installation, confirm the supported measurement arrangement and CT placement requirements.
WiFi Energy Monitor with Home Assistant
Home Assistant is a popular platform for bringing smart home information into a single dashboard.
A compatible WiFi energy monitor may provide electricity data that can be used for energy tracking and automation.
However, WiFi connectivity alone does not guarantee Home Assistant compatibility.
Before selecting a device, check whether the integration provides:
- Power readings in watts
- Accumulated energy readings in kWh
- Import and export energy data, if needed
- Suitable entities for the Home Assistant Energy dashboard
- Reliable updates and historical data availability
Some meters use the Tuya ecosystem, while other models offer MQTT or different integration methods.
The exact communication protocol and available Home Assistant entities depend on the product version and integration.

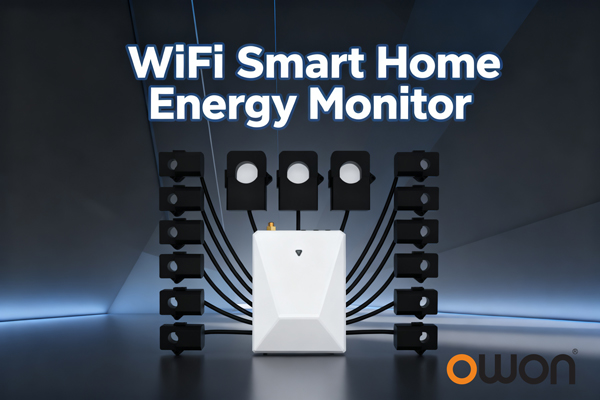

OWON PC341: WiFi Monitoring for the Whole Home and Individual Circuits
For homes that require more detailed electricity monitoring, the OWON PC341 Multi-Circuit Power Meter provides whole-home measurement with support for up to 16 additional branch circuits.
The meter uses external CT clamps and connects through 2.4GHz WiFi to the Tuya ecosystem.
Its main features include:
- Whole-home energy monitoring
- Up to 16 additional branch circuit measurements
- Single-phase, split-phase, and three-phase four-wire compatibility
- Bidirectional electricity measurement
- Real-time and historical energy data
- Tuya-compatible monitoring
- Wall or DIN rail mounting options
For example, homeowners may use the main CT channels to monitor overall household electricity usage while assigning additional CT sensors to selected electrical circuits.
This can provide a clearer picture of where electricity is consumed.
The supported CT ratings, number of installed sensors, and available monitoring functions depend on the selected configuration.
For projects requiring different connectivity options or monitoring arrangements, OWON also offers other WiFi energy meter models.
5 Essential Features to Check Before Buying
1. Electrical System Compatibility
Check whether the home uses single-phase, split-phase, or three-phase electricity.
A meter must support the actual electrical configuration. Three-phase compatibility does not automatically include every three-phase wiring system.
2. Whole-Home or Circuit-Level Monitoring
Decide whether total household consumption is enough or whether individual circuits need to be measured.
A multi-circuit system is more useful when detailed load comparisons are required.
3. CT Sensor Configuration
Check the supported CT current ranges, physical dimensions, and number of measurement channels.
The correct CT configuration depends on the installation.
4. WiFi and Smart Home Compatibility
Confirm the supported WiFi frequency, mobile app, and integration requirements.
If Home Assistant is important, verify compatibility with the exact model before purchasing.
5. Solar and Historical Energy Data
For solar homes, check whether the monitor supports bidirectional measurement.
Also confirm whether the app provides daily and monthly energy records in the format you need.
Frequently Asked Questions
Can a WiFi home energy monitor show real-time electricity usage?
Yes. Compatible models display current power consumption through a connected app or monitoring platform. Update intervals vary by device.
Can I check daily or monthly electricity consumption?
Many WiFi energy monitors provide daily and monthly kWh records. The available history and export functions depend on the model and app.
Do I need multiple CT clamps to monitor my home?
The number of CT clamps depends on the electrical system and monitoring requirements. Whole-home and individual circuit monitoring may require different configurations.
Can a WiFi home energy monitor identify which appliance uses the most electricity?
A whole-home monitor shows overall consumption but may not identify individual appliances. Circuit-level monitoring can help identify which electrical circuits consume the most energy.
Does a WiFi energy monitor work without an internet connection?
Some meters can continue measuring electricity when the network is unavailable, but remote access and data synchronization depend on the model. Offline data storage should be verified separately.
Can I install a WiFi home energy monitor myself?
CT-based monitors are often installed inside electrical panels where hazardous voltages may be present. Installation should be performed by qualified electrical personnel according to the manufacturer’s instructions and local regulations.
Conclusion
A WiFi home energy monitor provides a practical way to understand household electricity consumption through real-time readings, historical energy data, and optional circuit-level monitoring.
For basic monitoring, a whole-home system may be sufficient. Homes with solar panels or several major electrical loads may benefit from additional CT channels and bidirectional measurement.
The best choice depends on the electrical system, CT configuration, monitoring requirements, and smart home compatibility.
OWON Technology develops WiFi and Zigbee energy monitoring devices for residential, commercial, and OEM/ODM applications, including the PC341 multi-circuit power meter.
Explore OWON WiFi smart energy monitoring solutions to learn more about available models and configurations.
