A WiFi DIN rail energy meter provides real-time electricity monitoring from an electrical distribution panel, allowing users to track energy consumption remotely without checking the meter on-site.
Depending on the model, these meters can measure voltage, current, power, and energy usage, with additional features such as CT clamp measurement, bidirectional solar monitoring, and smart automation.
For residential buildings, commercial facilities, and energy management projects, choosing the right meter depends on the electrical system, installation method, and integration requirements.
What Is a WiFi DIN Rail Energy Meter?
A WiFi DIN rail energy meter is an electricity monitoring device designed for installation on a standard 35mm DIN rail inside an electrical distribution panel.
It combines electrical measurement with wireless communication, allowing compatible monitoring platforms to display electricity data remotely.
Typical measurements include:
- Voltage (V) and current (A)
- Active power (W)
- Energy consumption (kWh)
- Power factor (PF)
- Historical energy usage
- Bidirectional energy flow on supported models
Some meters measure current through direct electrical connections, while others use external current transformers (CT clamps).
DIN rail mounting and CT clamp measurement are not competing technologies. A meter can use external CT clamps while being mounted on a DIN rail.
Key Features of WiFi DIN Rail Energy Meters
Real-Time Electricity Monitoring
A DIN rail WiFi smart energy meter can provide live electrical measurements, helping users understand how much power a circuit or building is consuming.
Historical energy records can also support usage analysis and help identify changes in electricity demand.
Remote Monitoring and App Access
WiFi connectivity allows supported energy data to be accessed through a compatible app or monitoring platform.
This is useful for properties where electrical panels are not regularly inspected, including rental buildings, commercial facilities, and remote installations.
Bidirectional Energy Monitoring
Selected meters can measure electricity flowing in both directions.
For solar installations, this can help monitor grid import and export when the meter is installed at the appropriate measurement point.
However, measuring grid import/export does not automatically provide separate total solar generation and building consumption figures.
Smart Automation and Relay Control
Some WiFi DIN rail meters include a dry-contact relay for controlling compatible external equipment.
A monitoring-only meter does not necessarily support electrical load switching. Relay ratings and control functions should always be checked separately from the meter’s measurement range.
Tuya WiFi DIN Rail Energy Meter
A Tuya WiFi DIN rail energy meter connects compatible electrical monitoring hardware with the Tuya Smart or Smart Life ecosystem.
Depending on the model, users can access:
- Real-time power and energy readings
- Historical electricity consumption
- Remote monitoring through a mobile app
- Supported smart automation scenarios
For example, OWON offers Tuya-compatible DIN rail energy meters for single-phase and three-phase monitoring.
Tuya compatibility should not be confused with support for MQTT, Modbus, or other integration protocols. These may be available through separate product versions.
For system integrators, it is important to confirm the required platform and communication method before selecting a meter.
Single-Phase vs Three-Phase WiFi DIN Rail Energy Meters
Different electrical systems require different monitoring configurations.
A single-phase meter may be suitable for selected residential circuits and electrical loads, while three-phase meters are commonly used in commercial buildings, workshops, and larger electrical installations.
OWON provides several WiFi DIN rail energy meter options.
| Model | Electrical System | Main Features | Suitable Applications |
|---|---|---|---|
| PC472 | Single-phase | External CT clamps, DIN rail mounting, WiFi monitoring | Residential and individual circuit monitoring |
| PC473 | Single-phase / three-phase four-wire | External CT clamps, dry-contact relay, WiFi monitoring | Commercial panels and equipment control projects |
| PC4713 | Single-phase / split-phase / three-phase four-wire | WiFi + Ethernet, external CT clamps, bidirectional monitoring | Solar energy systems and advanced energy monitoring |
These models offer different capabilities rather than interchangeable configurations.
For single-phase applications, the OWON PC472 is a single-phase WiFi DIN rail energy meter with external CT clamps for residential and individual circuit monitoring.

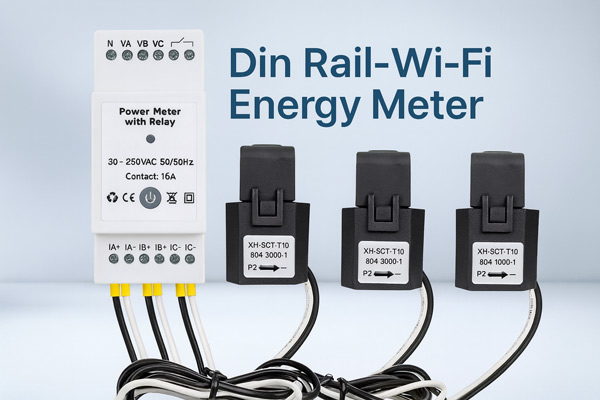

For commercial installations, the OWON PC473 is a three-phase WiFi DIN rail energy meter that combines CT-based monitoring with dry-contact relay functionality.
For projects requiring more flexible connectivity, the OWON PC4713 is a WiFi and Ethernet energy meter designed for single-phase, split-phase, and three-phase energy monitoring, including supported solar applications.
Important: Not every three-phase meter supports three-phase three-wire or delta systems. Always confirm the supported wiring configuration of the exact model.
How Is a WiFi DIN Rail Energy Meter Installed?
DIN rail energy meters are designed for installation inside compatible electrical distribution panels.
For CT-based models, the meter is mounted on the DIN rail while external CT clamps measure current around the appropriate conductors.
Before installation, check the following:
- Electrical compatibility: Confirm the supply voltage, phase configuration, and wiring diagram.
- CT selection: Choose suitable current transformer ratings and conductor opening sizes.
- CT orientation: Follow the manufacturer’s instructions to ensure correct measurement direction.
- Panel space: Verify DIN rail dimensions and available enclosure clearance.
- WiFi connectivity: Check wireless coverage, particularly inside metal electrical cabinets.
Installation should be carried out by qualified electrical personnel in accordance with applicable regulations.
5 Essential Tips for Choosing a WiFi DIN Rail Energy Meter
1. Confirm the electrical system
Determine whether the installation uses single-phase, split-phase, or three-phase power. For three-phase systems, check whether the meter supports the required wiring configuration.
2. Choose the correct CT configuration
Check the number of CT inputs, supported current ranges, and physical clamp dimensions. These should match the circuits being monitored.
3. Check monitoring requirements
Decide whether the project needs real-time measurements, historical kWh data, bidirectional solar monitoring, or multiple measurement points.
4. Verify platform compatibility
For Tuya-based projects, confirm Tuya Smart or Smart Life support. For EMS/BMS projects, check whether the required model provides suitable interfaces or protocols, such as MQTT, Modbus, or Ethernet.
5. Consider relay control and future expansion
If the project requires equipment control, choose a model with an appropriate relay interface. For larger deployments, consider integration requirements, maintenance access, and OEM/ODM customization options.
Frequently Asked Questions
What is the difference between a DIN rail energy meter and a CT clamp meter?
DIN rail describes how the meter is mounted, while CT clamps describe how electrical current is measured. Some meters combine DIN rail mounting with external CT clamps.
Does a WiFi DIN rail energy meter need a gateway?
Most WiFi models connect directly to a compatible 2.4GHz WiFi network without requiring a separate Zigbee gateway. The exact network requirements depend on the device.
Can a Tuya WiFi DIN rail energy meter monitor solar power?
Yes, if the meter supports bidirectional measurement and is installed correctly. It can help track electricity imported from and exported to the grid.
Can a WiFi DIN rail meter work with Home Assistant?
Selected models support Home Assistant integration. For example, compatible OWON PC4713 versions provide Home Assistant connectivity. Available measurements depend on the exact model and integration method.
Can a WiFi DIN rail energy meter control electrical equipment?
Some models include dry-contact relay functionality, such as supported PC473 variants. Relay control does not mean the meter can directly switch any connected electrical load. The relay’s electrical ratings and intended control method must be checked.
Can a DIN rail WiFi energy meter be used for electricity billing?
A monitoring meter should not be used for regulated or revenue billing unless the exact model has the required metering certification and approval for that application.
Conclusion
A WiFi DIN rail energy meter offers a practical way to monitor electricity consumption from an electrical distribution panel, with options for remote access, CT-based measurement, solar monitoring, and system integration.
For residential and commercial projects, the best choice depends on the electrical configuration, measurement requirements, connectivity, and available control functions.
OWON Technology manufactures WiFi and Zigbee energy meters, including DIN rail and CT-based solutions for smart buildings, solar systems, and OEM/ODM energy management projects.
Explore OWON WiFi smart energy monitoring solutions to learn more about available configurations and integration options.
