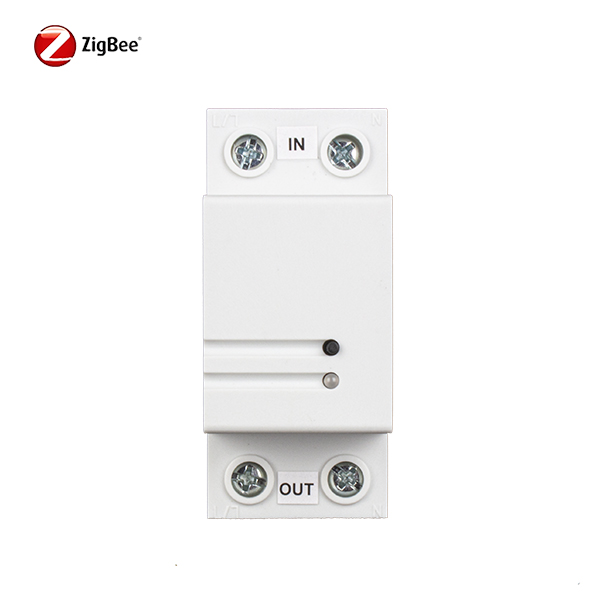

Zigbee DIN Rail Relay with Energy Monitoring | CB432

Main Feature:

The CB432 is a Zigbee 3.0 DIN rail relay with built-in energy monitoring for remote switching and load control in electrical panels. Available in 32A and 63A versions, it supports real-time energy measurement, scheduling, and Zigbee automation for smart buildings, HVAC systems, and energy management applications.

Model: CB432

Dimension: 81*36*66mm

Weight: 148g

Certification: CE,RoHS

Send Inquiry Download of Datasheet Download of Manual

Product Detail

Tech Specs

video

Product Tags

▶ Main Features:

• Zigbee 3.0 connectivity for reliable mesh networking
• Available in 32A and 63A relay versions
• Real-time and accumulated energy consumption monitoring
• Remote ON/OFF control, scheduling, and automation through Zigbee platforms

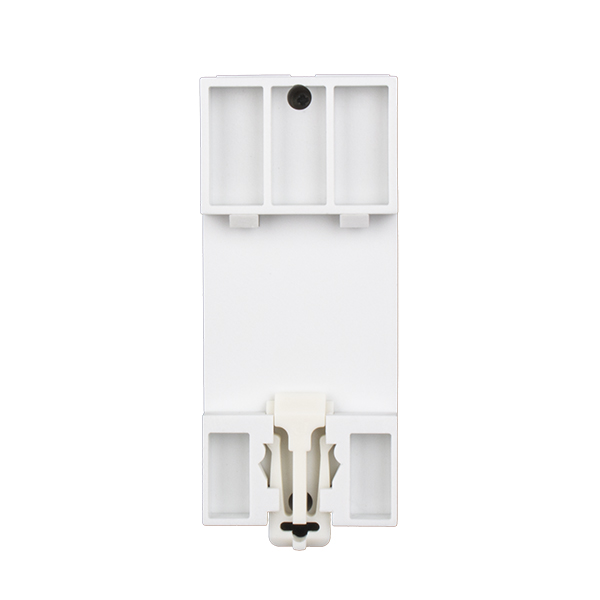

• DIN rail mounting for distribution boards and electrical control panels
• 100–240VAC operation for single-phase AC applications
• Acts as a Zigbee router to extend mesh network coverage
• Compatible with Zigbee2MQTT for local automation and third-party platform integration

smart powe breaker tuya din rail relay with energy monitor

tuya din rail relay smart power breaker smart power meter

tuya din rail relay zigbee din rail relay smart power meter with energy monitor

smart power breaker tuya din rail relay smart power meter with energy

▶Why Choose the CB432?

Relay Control and Energy Monitoring in One Device
The CB432 combines high-current switching and energy monitoring in a single DIN rail device, reducing installation complexity in smart electrical panels.
Designed for Smart Energy Automation
Real-time energy data can be combined with schedules and automation rules to support smarter load management.
Flexible Integration
Zigbee 3.0 and Zigbee2MQTT compatibility make the CB432 suitable for commercial automation, Home Assistant, BMS, and custom IoT platforms.

▶Application Scenarios

• Smart building energy management
• HVAC and water heater load control
• DIN rail distribution board automation
• Scheduled load switching and energy saving
• Apartment and hotel power management
• OEM/BMS energy control systems

▶FAQ:

Q1. What is a DIN rail relay?
A: A DIN rail relay is an electrical switching device designed for installation on a standard DIN rail inside distribution boards or control panels. It allows connected electrical loads to be switched manually or through an automation system.
Q2. How does a Zigbee relay work?
A: A Zigbee relay receives wireless commands through a Zigbee network to switch connected electrical loads on or off. When integrated with a compatible automation platform, it can also support scheduling, remote control, and automated load management.
Q3. What is the maximum load current of the CB432?
A: The CB432 is available in 32A and 63A versions, allowing system integrators to select the appropriate model for different electrical load requirements.
Q4. Does the CB432 provide energy monitoring?
A: Yes. The CB432 measures instantaneous and accumulated energy consumption of connected electrical loads, combining relay switching and energy monitoring in one DIN rail device.
Q5. Does the CB432 support Zigbee2MQTT?
A: Yes. The CB432 supports Zigbee2MQTT integration for local relay control, energy monitoring, and automation, making it suitable for Home Assistant and custom Zigbee-based systems.

▶ Packgae:

▶ Main Specification:


RF Characteristics	Operating frequency: 2.4 GHz Internal PCB Antenna Range outdoor/indoor: 100m/30m
ZigBee Profile	Zigbee 3.0
Power Input	100~240VAC 50/60 Hz
Max Load Current	Different models: • 32 A • 63 A
Calibrated Metering Accuracy	<=100W (Within ±2W ) >100W (Within ±2%)
Working environment	Temperature: -20°C~+55°C Humidity:up to 90% non- condensing
Weight	148g
Dimension	81x 36x 66 mm (LWH)
Certification	CE,ROHS
