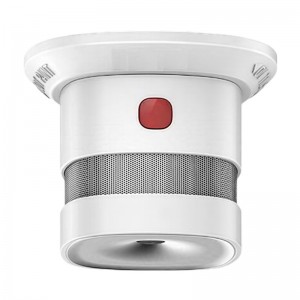

ZigBee Smoke Detector SD324

Main Feature:

The SD324 ZigBee smoke detector is integrated with an ultra-low- power ZigBee wireless module. It is a warning device that allows you to detect the presence of smoke in real time.

Model: SD 324

Item Dimension: 60(W) x 60(L) x 49.2(H) mm

Fob Port: Zhangzhou, China

Payment Terms: L/C,T/T

Send Inquiry Download of Datasheet Download of Manual

Product Detail

Tech Specs

video

Product Tags

▶ Main Features:

• ZigBee HA compliant

• Low consumption ZigBee module

• Mini appearance design

• Low power consumption

• Sound alarm up to 85dB/3m

• Lower power warning

• Allows mobile phone monitoring

• Tool-free installation

▶ Product:

wireless smoke detector zigbee zigbee fire sensor for hotel zigbee 3.0 smoke alarm

smart smoke detector supplier smoke detector for building automation

The SD324 is a ZigBee-based smoke detector designed for smart home and building safety systems. Supporting ZigBee HA and third-party gateway integration, it offers OEM/ODM branding flexibility. With CE/FCC/RoHS compliance, long battery life, and reliable smoke sensing, it fits residential, rental, and commercial fire alert applications.

▶ Video:

▶ Application:

▶ Shipping:

Previous: ZigBee Gas Detector GD334

Next: ZigBee Multi-Sensor (Motion/Temp/Humi/Light) PIR313

▶ Main Specification:

Operating Voltage	DC3V lithium battery
Current	Static Current: ≤10uA Alarm Current: ≤60mA
Sound Alarm	85dB/3m
Operating Ambient	Temperature: -10 ~ 50C Humidity: maximum 95%RH
Networking	Mode: ZigBee Ad-Hoc Networking Distance: ≤ 100 m
Dimension	60(W) x 60(L) x 49.2(H) mm
