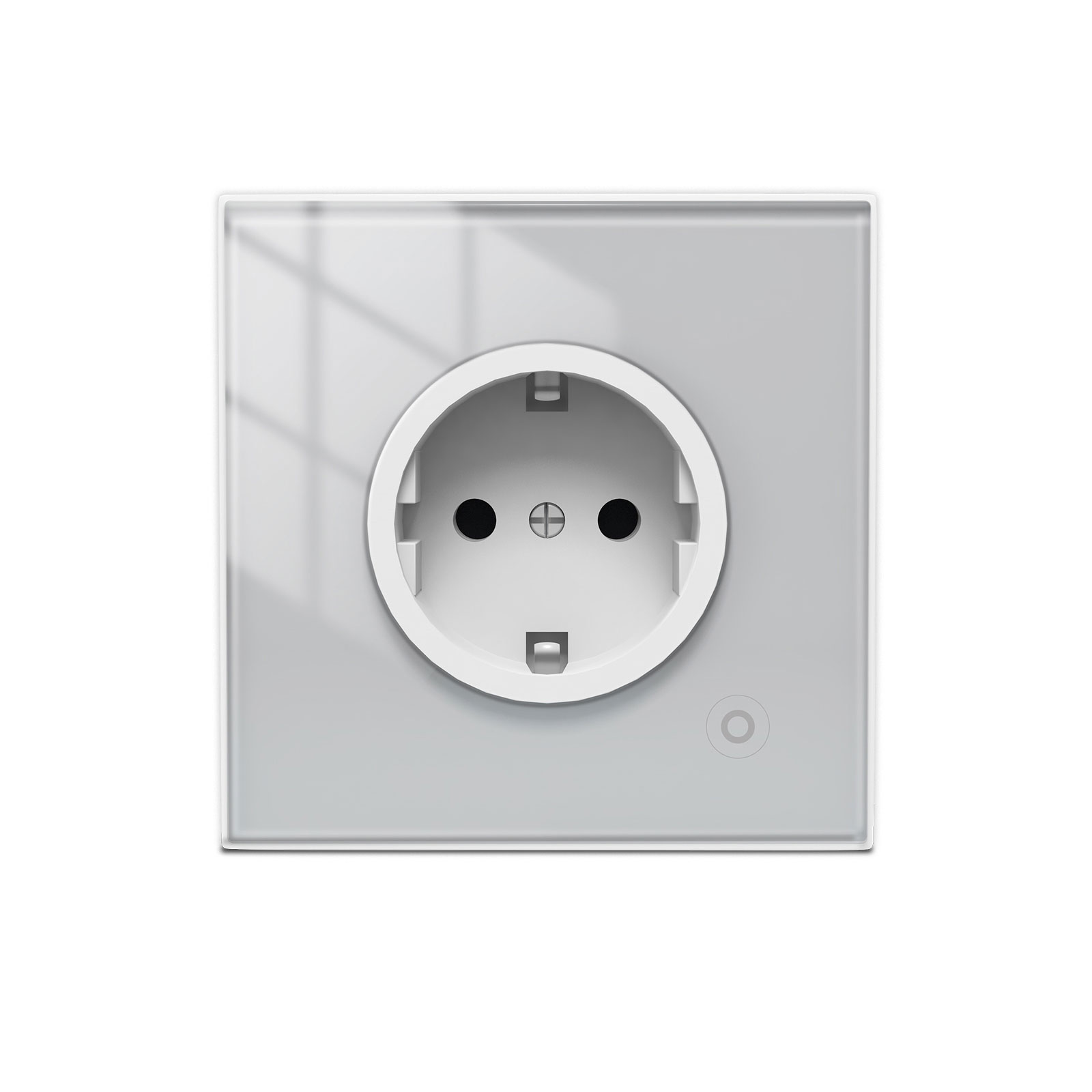

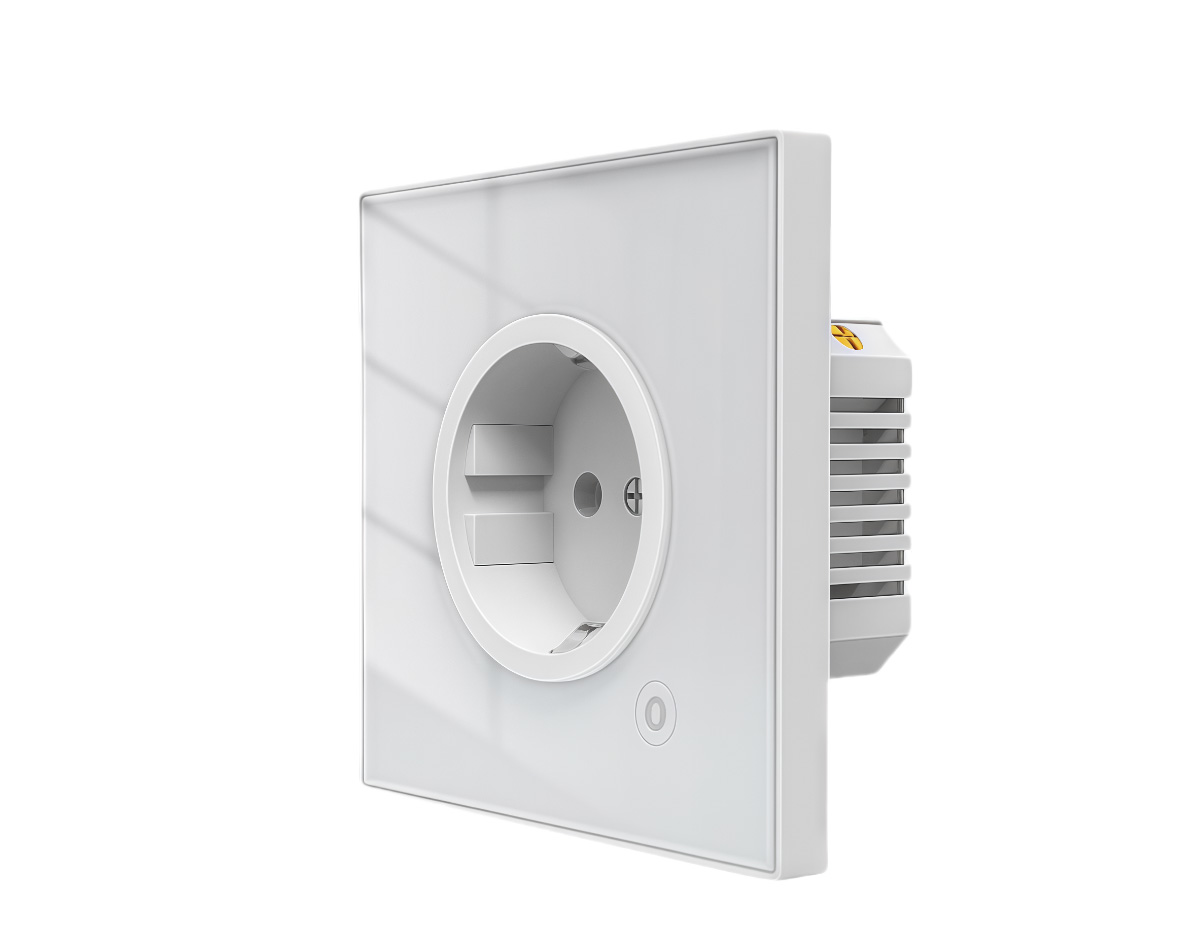

ZigBee Wall Socket with Energy Monitoring (EU) | WSP406

Main Feature:

The WSP406 is a Zigbee 3.0 smart wall socket for European in-wall installations, offering remote appliance control, real-time energy monitoring, and scheduling. Designed for smart homes, apartments, hotels, and commercial buildings, it supports Zigbee-based automation and energy management systems.


  • Model: WSP406-EU
  • Dimension: 85 x 85 mm
  • In-wall Size:  In-wall size: 48 x 48 x 35 mm
  • FOB: Fujian,China




  • Product Detail

    MAIN SPEC

    Product Tags

    Main Features

    • Zigbee 3.0 connectivity for smart home and building automation
    • Remote ON/OFF control with a manual wall switch
    • Real-time power and cumulative energy monitoring
    • Metering accuracy: ±2W at ≤100W; ±2% above 100W
    • Automatic power reporting based on load changes
    • Scheduling and automation through compatible Zigbee platforms
    • Zigbee mesh routing to extend network coverage
    • Up to 16A / 3000W load capacity with a glass-panel design

    Typical Applications

    • Smart Homes
    Monitor appliance energy usage and automate daily routines.
    • Hotels and Serviced Apartments
    Enable room-level energy monitoring and remote appliance control.
    • Building Energy Management
    Collect outlet-level energy consumption data for optimization projects.
    • Home Assistant and Zigbee2MQTT
    Support local automation and smart home integrations.

    Zigbee Wall Socket EU: Installation & Wiring Requirements

    The WSP406 Zigbee in-wall outlet is designed for compatible European electrical installations. Before installation, check the wall-box dimensions, wiring configuration, and local electrical requirements.

    A neutral wire is required, with Live (L), Neutral (N), and Ground (G) connections specified in the installation guide.

    The EU/FR wiring diagram below illustrates the required connections. Installation should be carried out by a qualified electrician with the power disconnected and verified as de-energized.

    WSP406 EU Zigbee Wall Socket Wiring Diagram

    FAQ

    Q1. What is a Zigbee wall socket?

    A Zigbee wall socket is an in-wall smart outlet that communicates through a Zigbee network, allowing users to remotely control connected appliances, automate schedules, and monitor energy consumption. It is widely used in smart homes and commercial building automation systems.


    Q2. Does the WSP406 support energy monitoring?

    Yes. The WSP406 provides real-time energy monitoring, enabling users to measure electricity consumption and analyze energy usage for homes, hotels, apartments, and commercial buildings.


    Q3. What is the difference between a Zigbee wall socket and a smart plug?

    A Zigbee wall socket is permanently installed inside the wall, making it ideal for long-term residential and commercial projects. Smart plugs are portable and easier to install but are generally better suited for temporary or individual appliance control.


    Q4. Does the WSP406 work with Home Assistant and Zigbee2MQTT?

    Yes. The WSP406 works with compatible Zigbee gateways and can be integrated into Home Assistant and Zigbee2MQTT environments for local automation, remote control, and energy monitoring.

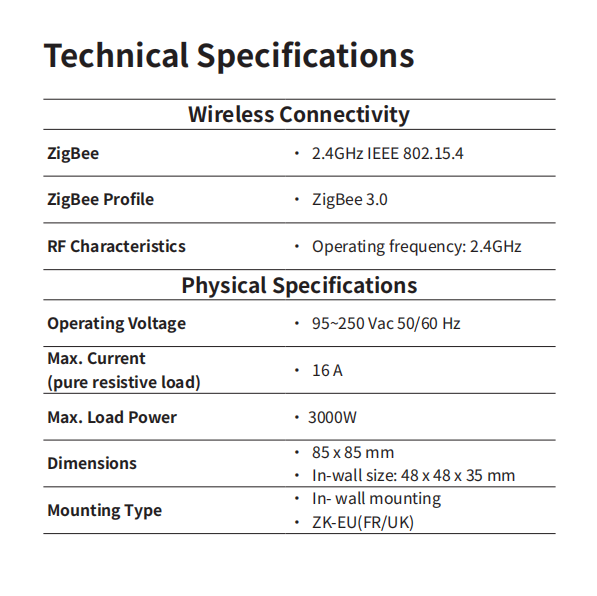

    Connectivity

    ZigBee • 2.4GHz IEEE 802.15.4
    ZigBee Profile • ZigBee 3.0
    RF Characteristics • Operating frequency: 2.4GHz
    • Internal PCB Antenna

    Physical Specifications

    Operating Voltage • 95~245 Vac 50/60 Hz
    Power consumption • < 1 W
    Max. Current • 16A
    Max. Load Power • 3000W
    Calibrated Metering Accuracy • ≤ 100W Within ±2W
    • >100W Within ±2%
    Reporting Cycle • Minimum:10s (Power change≥ 1W)
    • Maximum:1min (Power change < 1W)
    Operating environment • Indoor
    • Temperature: -10 ℃~+50 ℃
    • Humidity: ≤ 90% non-condensing
    Dimension • 86 (L) x 86(W) x 43 (H) mm
    Unit Packing (G.W.) • 201g
    Material • ABS flame retardant+ glass panelABS
