Energy bills show how much electricity a home has used, but they rarely explain where that energy went. A home energy monitor provides real-time visibility into electricity consumption, helping users understand which loads consume the most power, when demand increases, and how solar generation affects overall energy use.

Based on OWON’s experience developing smart energy meters for OEM partners, system integrators, solar equipment providers, and energy management projects, selecting the right monitoring solution depends on more than measurement accuracy alone. Electrical system compatibility, monitoring scope, communication method, installation approach, and future integration requirements all matter.

Modern home energy monitoring systems range from simple plug-in devices to whole-home and multi-circuit solutions that connect with mobile apps, solar systems, Home Assistant, and energy management platforms.

This guide explains how home energy monitors work, how they differ from utility smart meters, and what users and project buyers should consider before selecting a solution.

What Is a Home Energy Monitor?

A home energy monitor is a device that measures electricity use within a house or residential property.

Unlike a monthly utility bill, which only shows total energy consumption, a modern monitor can provide more detailed information, such as:

• Real-time power consumption
• Voltage and current
• Historical energy trends
• Peak usage periods
• Circuit-level consumption
• Solar production
• Grid import and export

Many home energy monitoring devices use current transformers, also called CT clamps. These sensors are installed around electrical conductors and measure current without cutting or replacing the main cables.

Depending on the system design, the monitor may be installed at:

• The main electrical panel
• A branch circuit
• A solar inverter connection
• An individual appliance outlet

The collected data is then sent to an app, web dashboard, smart home platform, or energy management system.

A basic monitor helps users understand electricity consumption. A more advanced smart home energy monitor can also support automation, solar optimization, alerts, and third-party integration.

How Does a Home Energy Monitoring System Work?

A typical home energy monitoring system includes three main parts.

1. Energy Measurement Device

The meter or sensor collects electrical data from the monitored circuit.

Depending on the device, it may measure:

• Voltage
• Current
• Active power
• Power factor
• Frequency
• Energy consumption
• Energy production

Whole-home and multi-circuit systems may use several CT clamps to measure the main supply and selected branch circuits separately.

2. Communication Network

The monitor sends data through a communication method such as:

• WiFi
• Zigbee
• Ethernet
• RS485
• MQTT
• Cloud API

A WiFi home energy monitor is often selected for residential applications because it can connect directly to a local router without requiring an additional gateway.

For professional projects, Ethernet, RS485, Modbus, or API-based communication may be preferred when integration with EMS, BMS, or private platforms is required.

3. Monitoring Interface

Users review energy information through:

• A mobile app
• A web dashboard
• Home Assistant
• A smart home platform
• An EMS or BMS interface

The interface may display real-time consumption, historical trends, solar production, estimated cost, and unusual energy behavior.

The practical value of the system depends on both the quality of the measurement and how clearly the data is presented.

Home Energy Monitor vs Smart Meter

A utility smart meter and a home energy monitor both measure electricity, but they serve different purposes.

A utility smart meter normally records total electricity use for billing.

A smart meter home energy monitor is a separate user-controlled device that provides more detailed operational data. It can help identify high-consumption loads, analyze solar self-consumption, and support smart home automation.

The two devices can work together. The utility meter remains responsible for billing, while the home energy monitor provides additional information for energy management.

Whole Home Energy Monitor vs Plug-in Energy Monitor

Home energy monitoring devices generally fall into two broad categories.

Plug-in Energy Monitor

A plug-in monitor is installed between an appliance and a wall outlet.

It is useful for checking individual devices such as:

• Refrigerators
• Space heaters
• Televisions
• Computers
• Kitchen appliances

Advantages include:

• Simple installation
• Low cost
• Easy appliance testing

However, it cannot show total household electricity use or monitor hardwired loads such as HVAC systems, electric water heaters, or solar equipment.

Whole Home Energy Monitor

A whole home energy monitor is installed at the main electrical panel and measures overall household consumption.

Depending on the model, it may also monitor individual circuits.

Typical benefits include:

• Complete household energy visibility
• Monitoring of HVAC and other major loads
• Solar production tracking
• Historical trend analysis
• Circuit-level comparison
• Integration with apps or smart home systems

For users who only need to test one appliance, a plug-in device may be enough.

For homeowners, property managers, installers, or energy service providers that need a complete view of electricity usage, whole-home monitoring is generally more suitable.

Some projects combine both approaches: a whole-home monitor provides the overall picture, while smart plugs provide detailed appliance-level information.

Smart Home Energy Monitor Features to Consider

Not every smart home energy monitor provides the same capabilities. The most useful features depend on the project.

Real-Time Monitoring

The system should provide current energy data rather than only monthly summaries.

Useful information may include:

• Instantaneous power
• Daily energy usage
• Peak demand
• Historical comparisons

WiFi or Wireless Connectivity

A wireless home energy monitor can simplify installation and remote access.

WiFi is especially useful when users want:

• Direct router connection
• Mobile app access
• Cloud-based reports
• Remote monitoring

However, wireless signal quality should be considered if the device is installed inside a metal electrical cabinet.

App and Dashboard Access

A good home energy monitoring app should present data clearly.

Useful functions include:

• Real-time energy display
• Daily, weekly, and monthly trends
• Historical data export
• Solar production tracking
• Alerts or automation settings

Circuit-Level Monitoring

Whole-home data shows total consumption, but it may not identify which systems are responsible.

Circuit-level monitoring is useful for tracking:

• HVAC
• EV chargers
• Lighting
• Water heating
• Solar circuits
• Major appliances

A system with multiple sensors provides more detailed energy insight than a single main-feed monitor.

Solar and Bidirectional Measurement

For solar-equipped homes, the monitor should distinguish between:

• Electricity imported from the grid
• Solar energy consumed on-site
• Excess solar exported to the grid

Without bidirectional measurement, solar performance data may be incomplete.

Smart Home and Platform Integration

Advanced users and solution providers may require integration with:

• Home Assistant
• MQTT
• Tuya
• Private cloud systems
• Energy management platforms

For expandable projects, open communication and API availability can be more important than app appearance alone.

Home Energy Monitor for Solar and Home Assistant

Modern homes are becoming more energy-aware with the growth of solar PV systems, battery storage, and smart home platforms.

A suitable home energy monitor for solar should provide more than basic electricity consumption data. It should help users understand the complete energy flow:

• Solar generation
• Home electricity consumption
• Grid import
• Grid export
• Energy storage performance

For solar applications, bidirectional measurement is especially important because electricity can flow in multiple directions. A monitoring system should be able to distinguish between energy produced by solar panels and energy consumed by household loads.

For users who prefer open smart home ecosystems, a home energy monitor with Home Assistant integration provides additional flexibility.

Communication methods such as:

• MQTT
• Local API
• Open protocols

allow energy data to be integrated into smart home dashboards and automation scenarios.

Typical applications include:

• Automatically running appliances when solar production is high
• Tracking standby energy consumption
• Creating custom energy dashboards
• Optimizing battery charging schedules

For advanced users and professional installers, communication flexibility is often as important as measurement accuracy.

Choosing the Right Home Energy Monitoring System

Selecting the right home energy monitoring system depends on the application requirements rather than simply choosing the device with the most features.

Before selecting a solution, consider the following factors.

Monitoring Scope

Different projects require different levels of visibility.

• Single circuit monitoring is suitable for tracking specific appliances or loads.
• Whole home monitoring provides overall household energy visibility.
• Multi-circuit monitoring allows detailed analysis of different electrical branches.

Electrical System Compatibility

A suitable monitor should match the electrical system being measured.

Consider:

• Single-phase systems
• Split-phase systems
• Three-phase systems
• Solar and battery storage configurations

Communication Requirements

The communication method determines how easily the system can integrate with other platforms.

Common options include:

Future Expansion

A common mistake is selecting a monitoring device only based on current needs.

For example, a homeowner may initially monitor electricity usage but later add:

• Solar panels
• EV chargers
• Battery storage
• Smart home automation

Choosing a scalable system can avoid replacing equipment in the future.

OWON Home Energy Monitoring Solutions

As a manufacturer specializing in smart energy meters and IoT energy monitoring solutions, OWON develops products for smart homes, solar applications, commercial buildings, and energy management projects.

Different applications require different monitoring approaches. Instead of one universal product, OWON provides solutions based on circuit coverage, communication requirements, and integration needs.

Single Circuit Monitoring – PC311

For users who only need to monitor a specific electrical circuit, a compact CT-based energy monitor can provide an easy installation approach.

The OWON PC311 is designed for single-phase energy monitoring applications and provides:

• WiFi connectivity
• CT clamp measurement
• Real-time electricity monitoring
• Historical energy data
• Solar production monitoring capability

It is suitable for basic residential energy monitoring scenarios.

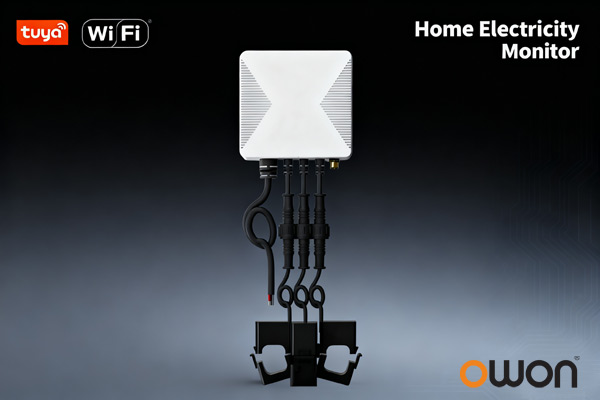

Whole Home Energy Monitoring – PC321

For homeowners or installers who need complete household energy visibility, whole-home monitoring provides a more comprehensive solution.

The OWON PC321 supports:

• Single-phase, split-phase, and three-phase systems
• Multiple CT clamp options
• Real-time voltage, current, power, and energy monitoring
• WiFi connectivity
• Bidirectional measurement for energy usage and solar production

It is designed for applications where users need to understand total household electricity consumption and solar energy performance.

Multi-Circuit Energy Monitoring – PC341

Some projects require more detailed information than total household consumption.

The OWON PC341 is designed for multi-circuit monitoring, allowing users to analyze different electrical loads separately.

Typical monitored circuits may include:

• Solar systems
• Lighting
• HVAC equipment
• Appliances
• Individual branch circuits

With support for monitoring multiple circuits, PC341 is suitable for advanced home energy monitoring systems where detailed energy analysis is required.

Solar and Advanced Energy Management – PC4713

For projects involving solar PV, battery storage, or professional energy management systems, more advanced measurement and communication capabilities are often required.

The OWON PC4713 supports:

• Single-phase, split-phase, and three-phase systems
• Bidirectional energy measurement
• WiFi, Ethernet, and RS485 communication options
• Modbus RTU, Modbus TCP, and MQTT integration
• Real-time monitoring of voltage, current, power factor, active power, reactive power, and apparent power

These capabilities make PC4713 suitable for solar monitoring, EMS integration, smart buildings, and advanced energy management applications.

Frequently Asked Questions

Is a home energy monitor worth it?

A home energy monitor is valuable for users who want better visibility into electricity consumption, identify energy waste, improve solar self-consumption, or optimize smart home automation.

The value depends on the application. For simple monitoring, a basic solution may be enough. For solar, automation, or energy management, a more advanced system provides greater benefits.

How can I monitor my whole house electricity?

A whole home energy monitor installed at the electrical panel can measure overall household electricity usage and provide real-time information through an app, dashboard, or smart home platform.

CT clamp-based systems are commonly used because they can be installed without replacing existing electrical meters.

Can a home energy monitor work with solar panels?

Yes. A suitable home energy monitor for solar can measure both electricity consumption and solar production.

Bidirectional energy monitoring helps users understand:

• How much solar energy is generated
• How much energy is used locally
• How much energy is exported to the grid

Can a home energy monitor work with Home Assistant?

Some energy monitoring solutions support open communication methods such as MQTT or APIs, allowing integration with Home Assistant and other smart home platforms.

The available integration method depends on the specific product model.

What is the best home energy monitoring system?

The best solution depends on the project requirements.

A suitable system should match:

• Required monitoring coverage
• Electrical system type
• Solar requirements
• Communication needs
• Future expansion plans

For example, single-circuit monitoring may be suitable for basic applications, while multi-circuit or professional energy meters are better for solar, automation, and energy management projects.

Conclusion

A modern home energy monitor provides more than electricity measurement. It gives homeowners, installers, and energy professionals the visibility needed to understand consumption patterns, optimize energy usage, and integrate renewable energy systems.

From simple single-circuit monitoring to whole-home energy monitoring systems with solar and smart home integration, selecting the right solution depends on the application’s requirements.

With experience developing smart energy meters for OEM partners, system integrators, and energy projects, OWON provides flexible monitoring solutions designed for residential energy management, solar applications, and smart energy ecosystems.
