3 Phase WiFi Energy monitor with Modbus RS485 | PC4713

Main Feature:

The OWON PC4713 is a 3 phase WiFi energy meter designed for commercial energy monitoring, solar PV systems, and EMS/BMS integration. It supports Modbus TCP, Modbus RTU, MQTT, and Tuya connectivity, providing real-time measurement of voltage, current, power factor, active power, reactive power, and bidirectional energy flow.

Model: PC4713-W-TY-E

Dimension: 18*50*90mm

Send Inquiry Download of Datasheet Download of Manual

Product Detail

Product Tags

Main Features

• Supports Single-Phase, Split-Phase, and 3-Phase electrical systems
• Real-time monitoring of voltage, current, frequency, power factor, active power, reactive power, and apparent power
• Bidirectional energy metering for energy consumption and solar generation monitoring
• Supports MQTT, Modbus TCP, Modbus RTU, and Tuya cloud integration
• Optional RJ45 Ethernet and RS485 communication interfaces
• Compatible with EMS, BMS, SCADA, and third-party energy management platforms
• Available CT ratings from 50A to 750A
• Supports historical energy analysis and trend visualization
• DIN rail mounting for electrical cabinets and control panels
• Suitable for commercial, industrial, and renewable energy projects

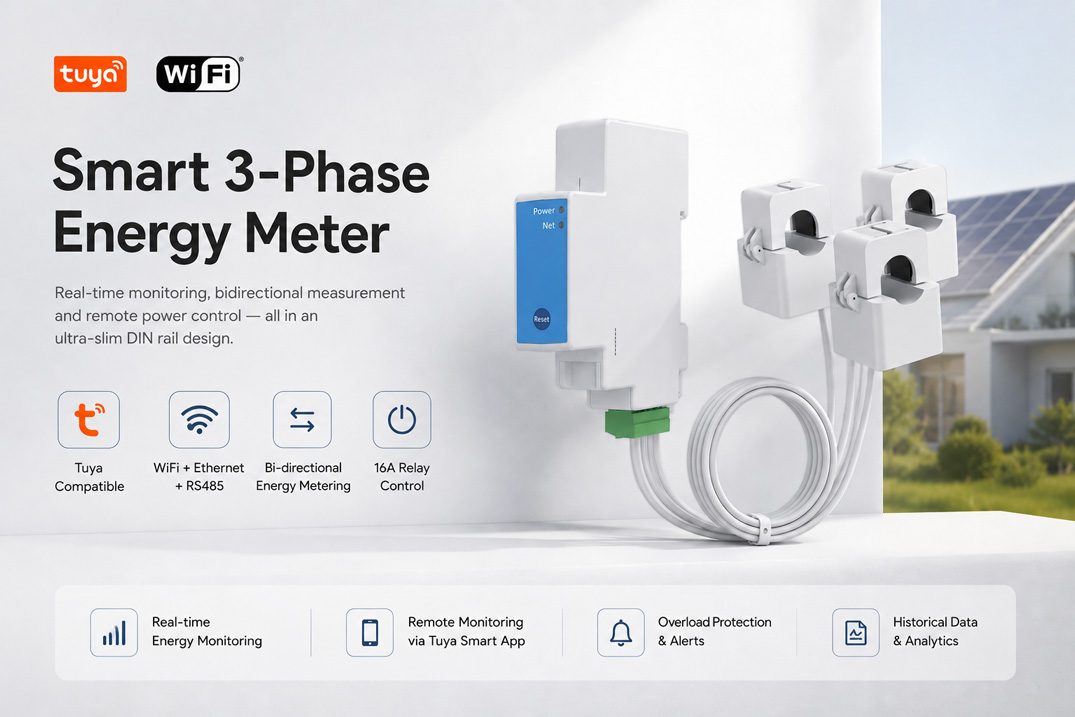

smart energy monitoring for solar power system with ct clamps

Application Scenarios

Commercial Building Energy Monitoring
Monitor electricity consumption across office buildings, retail stores, hotels, and commercial facilities.
Solar PV and Energy Storage Systems
Track grid import, grid export, and solar generation for photovoltaic and battery storage applications.
Building Energy Management Systems (BMS)
Integrate energy data into centralized building automation and energy management platforms.
Industrial Energy Monitoring
Monitor production equipment, machinery, HVAC systems, and critical loads in industrial facilities.
Utility and Energy Service Projects
Provide accurate energy data for energy audits, sub-metering, and energy efficiency programs.

FAQ

Q1: Does the PC4713 support Modbus communication?
Yes. The PC4713 supports both Modbus TCP and Modbus RTU communication for integration with EMS, BMS, SCADA, and industrial automation systems.
Q2: Can the PC4713 monitor solar energy production?
Yes. The meter supports bidirectional energy measurement and can monitor both energy consumption and solar energy generation.
Q3: Is the PC4713 suitable for three-phase systems?
Yes. It supports single-phase, split-phase, and three-phase electrical systems depending on project requirements.
Q4: What communication interfaces are available?
The PC4713 supports WiFi by default and offers optional RJ45 Ethernet and RS485 communication interfaces.
