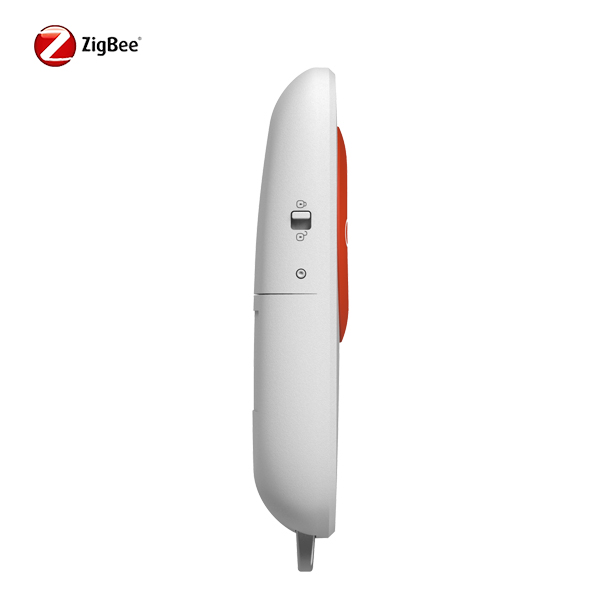

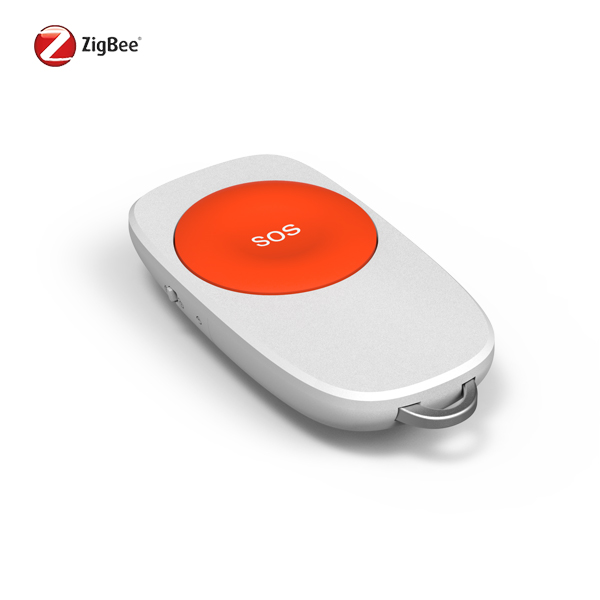

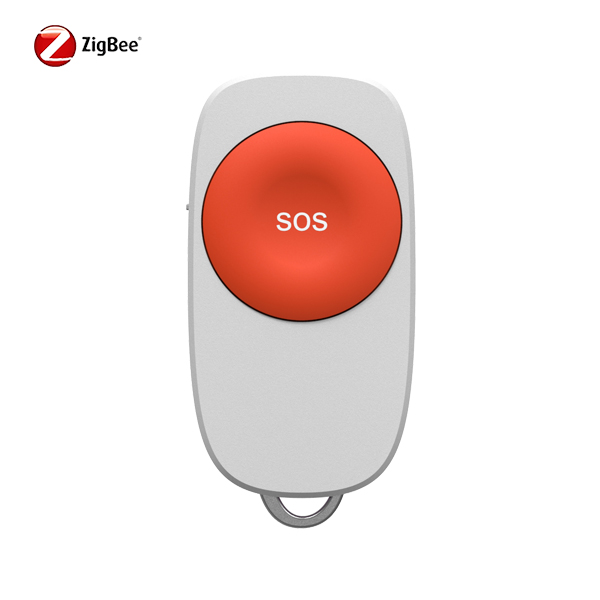

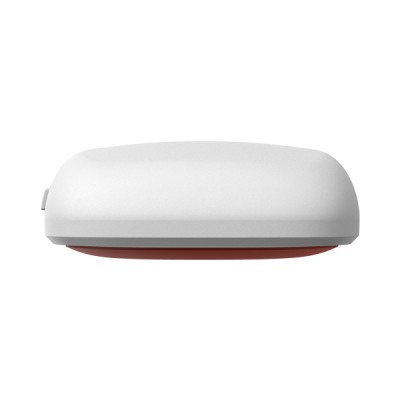

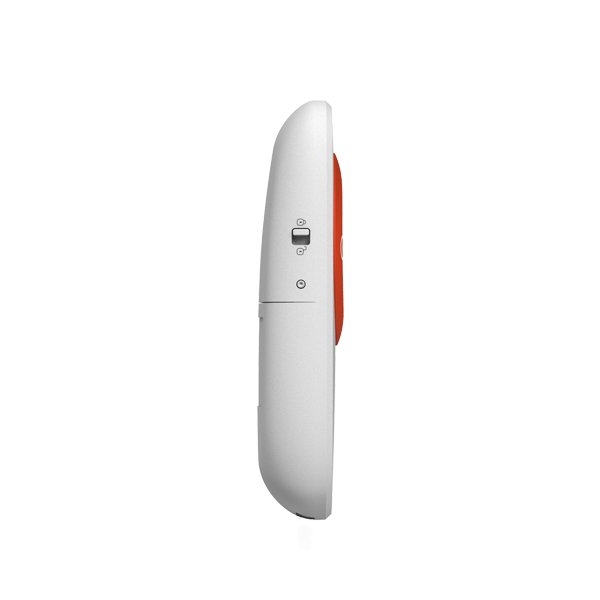

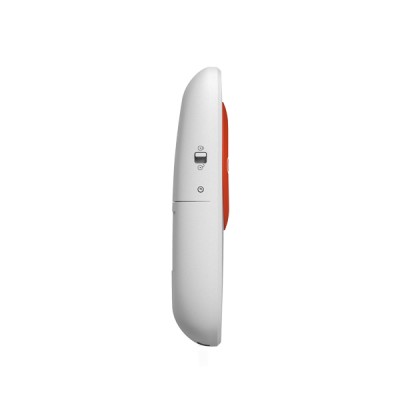

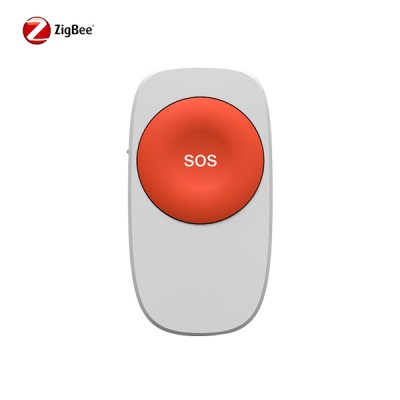

Compact ZigBee Panic Button for Personal Emergency Alerts | PB206

Main Feature:

PB206 is a compact ZigBee panic button compliant with ZigBee HA 1.2. Featuring one-press emergency alerts, 2.4GHz IEEE 802.15.4 connectivity, a 100 m outdoor communication range, and up to one year of battery life, it is ideal for personal safety, office security, residential protection, and smart building applications.

Model: PB206

Item Dimension: 37.6(W) x 75.66(L) x 14.48(H) mm

Weight: 31g

Certification: CE,RoHS

Send Inquiry Download of Datasheet Download of Manual

Product Detail

Tech Specs

Video

Product Tags

▶ Main Features:

• ZigBee HA 1.2 compliant for reliable wireless communication
• One-press emergency alert with instant notification
• Compatible with standard ZigBee gateways
• Low-power design with up to one year of battery life
• Compact design for flexible installation and portable use
• Ideal for personal safety, office security, and smart building applications

▶ Product:

zigbee panic button secutiry sensor senior health eldly care device

▶Application:

The PB206 is designed for compact wireless emergency alert applications across residential, commercial, and smart security environments.
• Personal Emergency Assistance
Carry or place the compact panic button in convenient locations to quickly request help during unexpected situations at home or in daily life.
• Office & Workplace Security
Enable employees to discreetly trigger emergency alerts in offices, reception areas, retail stores, and other commercial workplaces.
• Residential Safety Systems
Integrate the PB206 into ZigBee-based smart home security systems to provide instant emergency notifications for family members.
• Property Management & Rental Housing
Provide tenants and property managers with a simple emergency alert solution for apartments, rental properties, and shared residential communities.
• Smart Building Security
Deploy the PB206 as part of ZigBee-enabled security and automation systems for offices, commercial buildings, and public facilities.

FAQ

Q1. What is a ZigBee panic button used for?
A: A ZigBee panic button is used to send an emergency alert through a ZigBee network with a single button press. The PB206 is designed for personal safety, office security, residential protection, and smart building applications where fast wireless emergency notification is required.

Q2. Does the PB206 require a ZigBee gateway?
A: Yes. The PB206 communicates through a compatible ZigBee gateway or hub. When the panic button is pressed, the gateway receives the signal and forwards emergency notifications to the connected mobile application or monitoring platform.

Q3. Where can the PB206 panic button be installed?
A: Thanks to its compact design, the PB206 can be placed on a wall, beside a bed, under a desk, or in other convenient locations. It is suitable for homes, offices, retail stores, apartments, hotels, and other ZigBee-enabled security environments.

Q4. How long does the PB206 battery last?
A: The PB206 is powered by a CR2450 3V lithium battery and offers up to one year of battery life under normal operating conditions. Its low-power ZigBee design helps reduce maintenance requirements in long-term deployments.

▶ Shipping

▶ Main Specification:

Wireless Connectivity	ZigBee 2.4GHz IEEE 802.15.4
RF Characteristics	Operating Frequency: 2.4GHz Outdoor/Indoor range: 100m/30m
ZigBee Profile	Home Automation Profile
Battery	CR2450, 3V Lithium batteryBattery Life: 1 year
Operating Ambient	Temperature: -10~45°CHumidity: up to 85% non-condensing
Dimension	37.6(W) x 75.66(L) x 14.48(H) mm
Weight	31g
