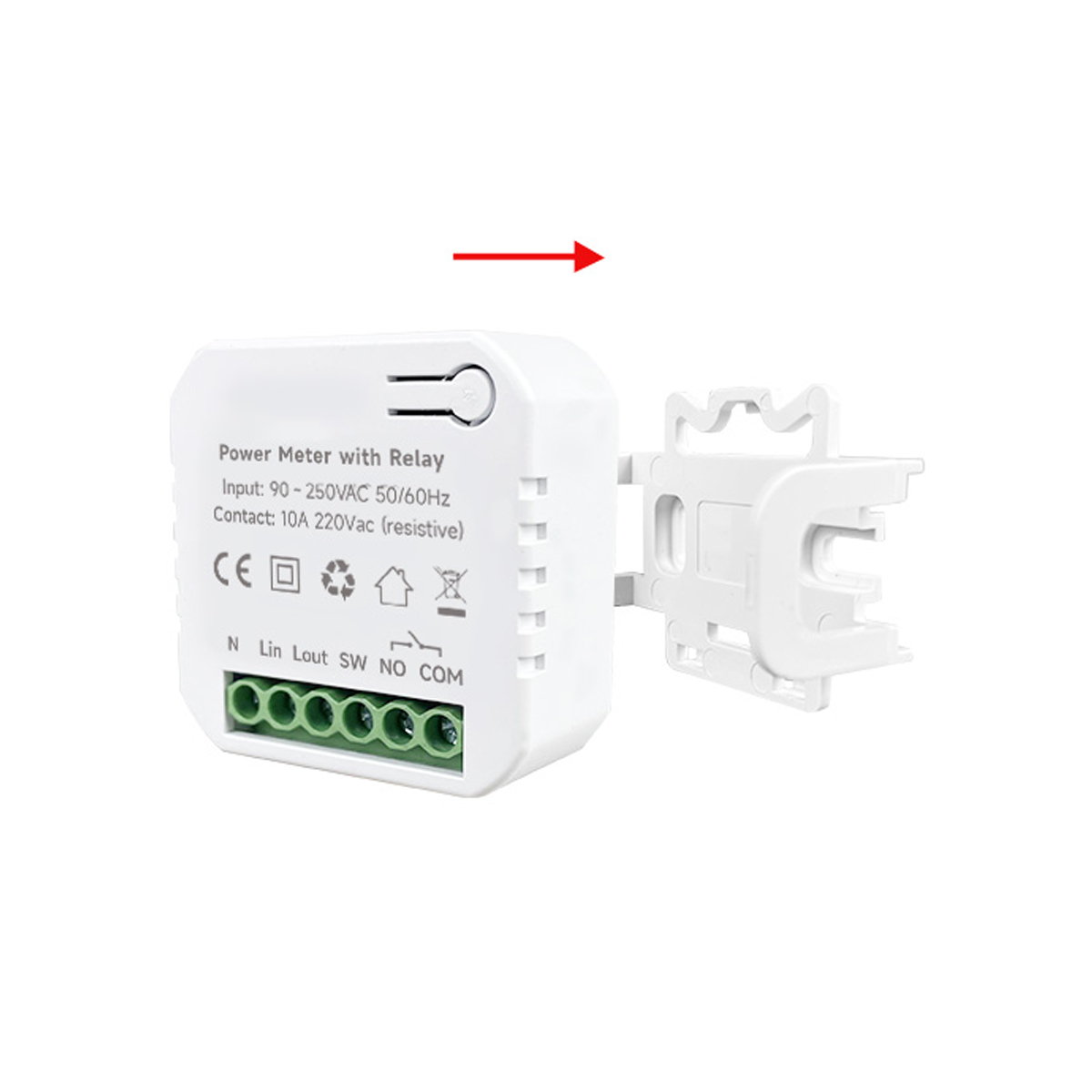

Main Features:
• ZigBee 3.0
• Single phase electricity compatible
• Measure the instantaneous and accumulative energy usage of the
connected devices
• Measures real-time Voltage, Current, PowerFactor, Active Power
• Support Energy Usage/Production measurement
• Support Switch input terminal
• Schedule the device to automatically power electronics on and off
• 10A Dry contact output
• Lightweight and easy to install
• Extend the range and strengthen ZigBee network communication
Why Choose the SLC611?
Combines Metering and Load Control
The SLC611 integrates real-time energy measurement and relay-based load control into a single Zigbee device, reducing installation complexity and saving valuable panel space.
Built for Energy Automation
Instead of monitoring energy alone, the SLC611 enables automatic load control based on real-time electrical data, improving energy efficiency and equipment management.
Reliable Zigbee Mesh Connectivity
Zigbee 3.0 mesh networking provides stable communication for distributed automation systems, making the SLC611 suitable for smart buildings and multi-device deployments.
Application Scenario:
The SLC611 is suitable for a wide range of energy monitoring and relay control applications, including:
• Smart building energy monitoring for lighting and electrical circuits
• HVAC equipment power control based on operating schedules or energy usage
• Sub-metering for apartments, offices, and commercial buildings
• Room-level load switching for hotels and multi-room facilities
• OEM energy management systems requiring integrated metering and relay control
• Building Management Systems (BMS) with Zigbee-based automation
FAQ
Q1. What is the difference between a power meter with relay and a standard power meter?
A: A power meter with relay combines real-time energy monitoring and relay control in one device. In addition to measuring electrical parameters, it can remotely switch connected loads for automation and energy management.
Q2. What can the 10A dry-contact relay control?
A: The 10A dry-contact relay can control compatible electrical loads such as HVAC equipment, lighting circuits, pumps, contactors, and other automation devices within its rated specifications.
Q3. Can the SLC611 measure both energy consumption and energy production?
A: Yes. The SLC611 supports both energy consumption and energy production measurement, making it suitable for grid-connected, renewable energy, and energy management applications.
Q4. Why combine energy metering and relay control in one device?
A: Combining energy metering and relay control allows users to monitor electrical loads while automatically switching equipment based on schedules, energy consumption, or automation rules, reducing installation complexity and improving system efficiency.
Shipping:
|
ZigBee
|
•2.4GHz IEEE 802.15.4
|
|
ZigBee Profile
|
•ZigBee 3.0
|
|
RF Characteristics
|
• Operating frequency: 2.4GHz
• Internal antenna
|
|
Operating Voltage
|
•90~250 Vac 50/60 Hz
|
|
Max. Load Current
|
•10A Dry contact
|
|
Calibrated Metering Accuracy
|
• ≤ 100W Within ±2W
• >100W Within ±2%
|
