▶Product Overview
The SPM912 Bluetooth Sleep Monitoring Belt is a non-contact, non-invasive health monitoring solution designed for elderly care, healthcare facilities, and smart health platforms.

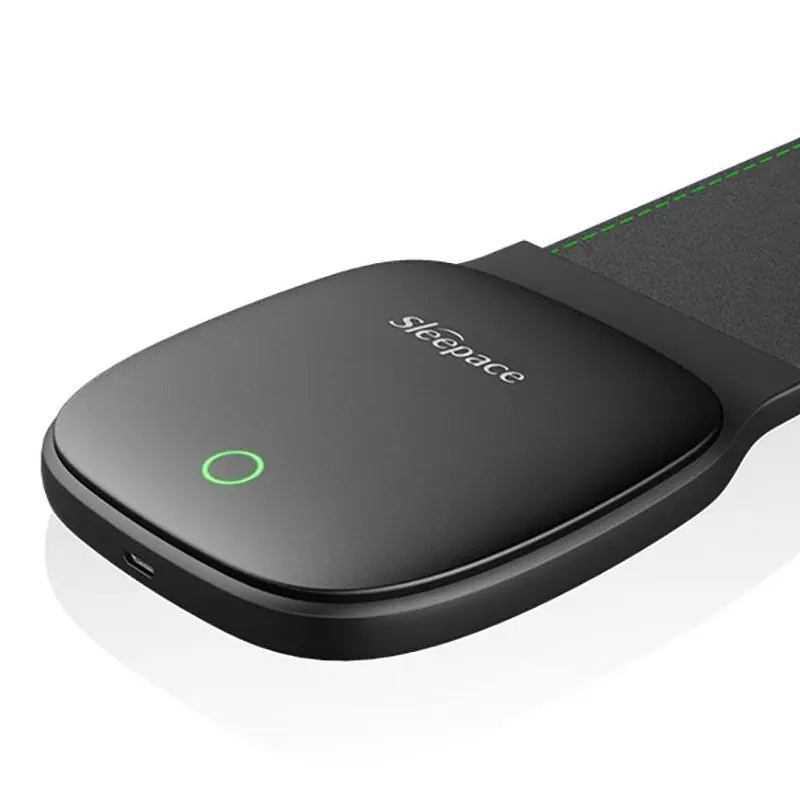

Using an ultra-thin 1.5 mm sensing belt, the device continuously monitors heart rate and respiration rate during sleep, enabling early detection of abnormal conditions without requiring wearable devices.

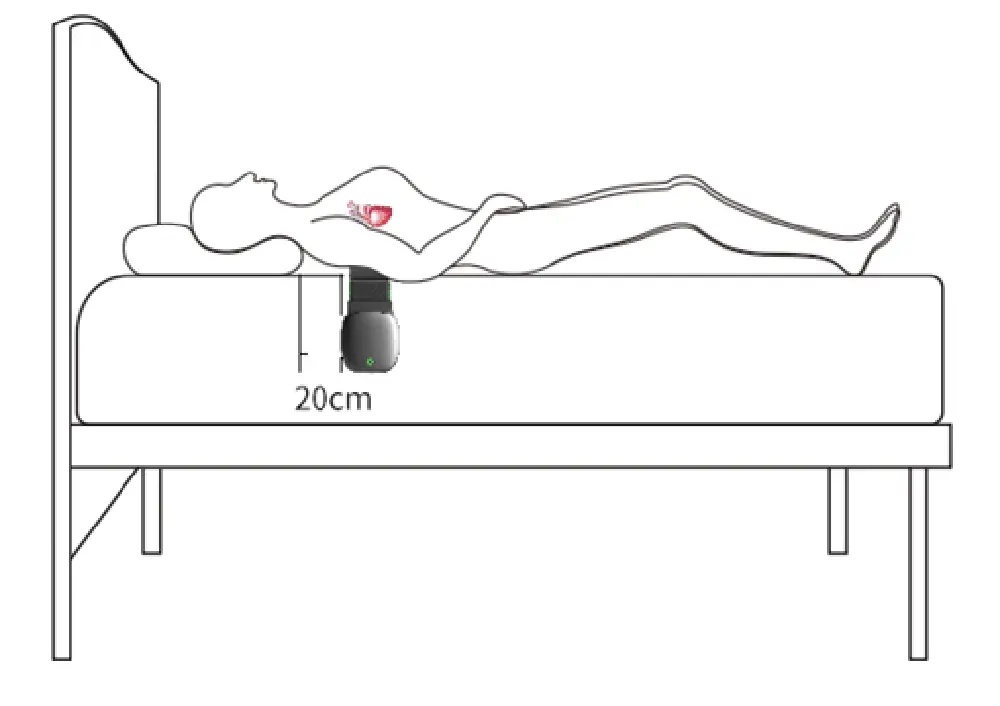

Unlike traditional wearable trackers, SPM912 works under the mattress, providing a comfortable and maintenance-friendly solution for long-term health monitoring.
▶ Main Features:
· Bluetooth 4.0
· Real time heat rate and respiration rate
· The historical data of heart rate and respiration rate can be queried and displayed in a gragh
· Warning for abnormal heart rate, respiration rate and body movement

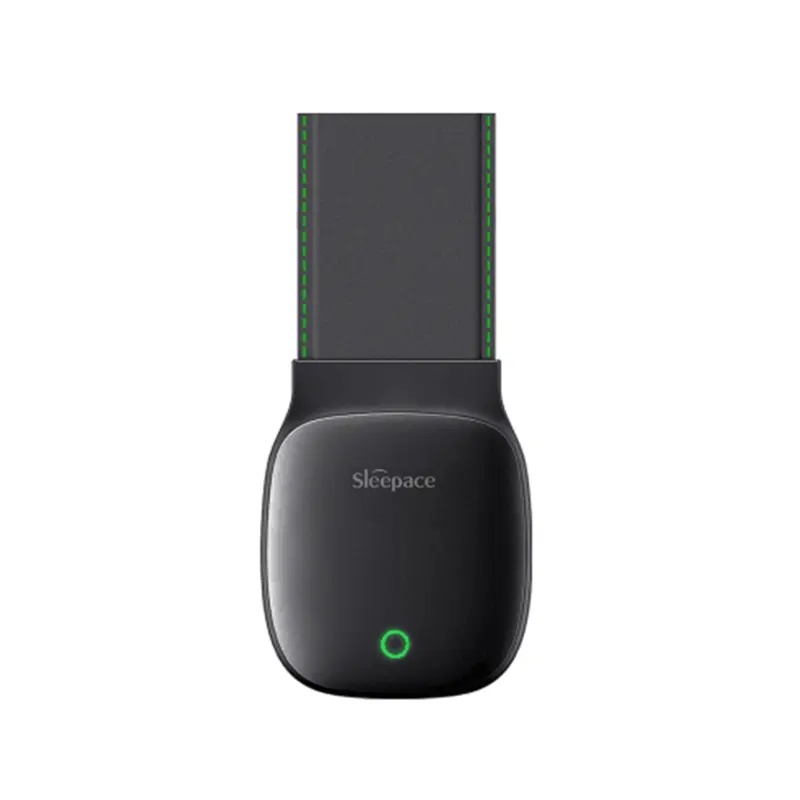

▶ Product:
▶Application:
· Elderly Care & Nursing Homes
Continuous sleep health monitoring with automated alerts for caregivers, reducing response time to emergencies.
· Smart Healthcare Facilities
Supports centralized patient monitoring systems in hospitals, rehabilitation centers, and assisted living facilities.
· Home-Based Elderly Monitoring
Ideal for remote health monitoring solutions that prioritize comfort and long-term usage.
· OEM & Healthcare Platform Integration
Suitable for OEM/ODM partners building smart health, telemedicine, or assisted-care platforms.
▶ Packgae:
▶ Main Specification:
| Product Name | Bluetooth Heart Rate Health sleeping Monitor sleeping belt | ||
| Appearance | |||
 |
|||
| Product | |||
| Product Color | Dark gray | ||
| Dimension of Control case | 104mm*54mm*18.6mm | ||
| Dimension of sensor band | 830mm*45mm*1.5mm | ||
| Material of control case | PC+ABS, PC+TPU | ||
| Material of sensor band | Lycra | ||
| Net Weight of Product | 100g | ||
| Main Spec | |||
| Sensor Type | Piezo sensor | ||
| Sensor Type | Heart rate, Respiratory, Bodymovement | ||
| Communication Protocal | BT | ||
| BT function | bT pairing | ||
| SD Card Memory | SPI FALSH 8MB | ||
| Bluetooth Spec | |||
| Frequency | 2402- 2480MHz | ||
| Bluetooth Communication | BLE4.1 | ||
| Output Power | 0dB ±3dB | ||
| Receive sensitivity | -89 dBm | ||
| Range | over 10M LOS in open field | ||
| Wifi Spec | |||
| Frequency | 2.412-2.484GHz | ||
| Data Speed | 802.11b: 16dBm±2dBm | ||
| Receive sensitivity | 802.11b: -84 dBm (@11Mbps ,CCK) | ||
| Wifi Protocal | IEEE802.11b/g/n | ||
| Exterior interface | |||
| Power Socket | MICRO USB | ||
| Input | DC 4.7-5.3V | ||
| Electric charateristics | |||
| Power supply | Adaptor | ||
| Adaptor Dimension | Input plug:Korea Plug; output plug: MICRO USB | ||
| Adaptor input/output | Input: AC 100-240V ~ 50/60Hz | Power Cable: 2.5M | |
| Rated Power | <2W | ||
| Max Current | 400mA | ||
| User-device Interaction | |||
| Turn on/off | On: power turned-on | ||
| LED Indication | 1pcs, LED will be green for 5s when device is | ||
| Environment Characteristics | |||
| OperationTemperature | 0℃ ~ 40℃ | ||
| Storage Temperature | -10℃ ~ 70℃ | ||
| Operation humidity | 5% ~ 95%，no condensation of moisture | ||
-
